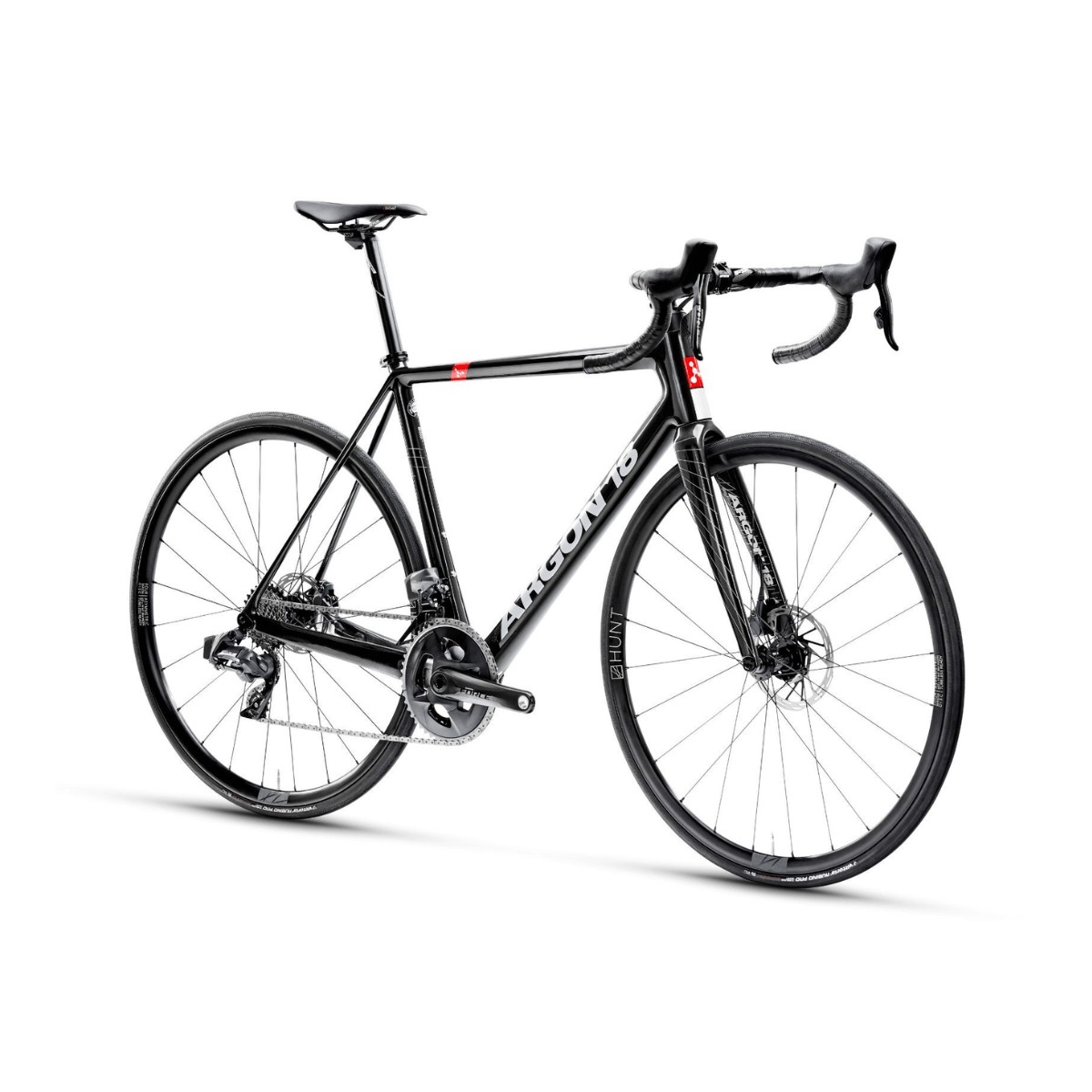

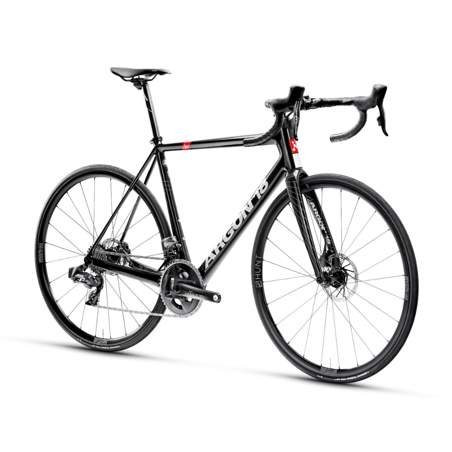

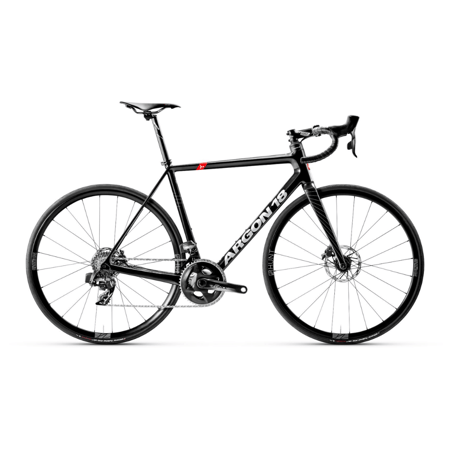

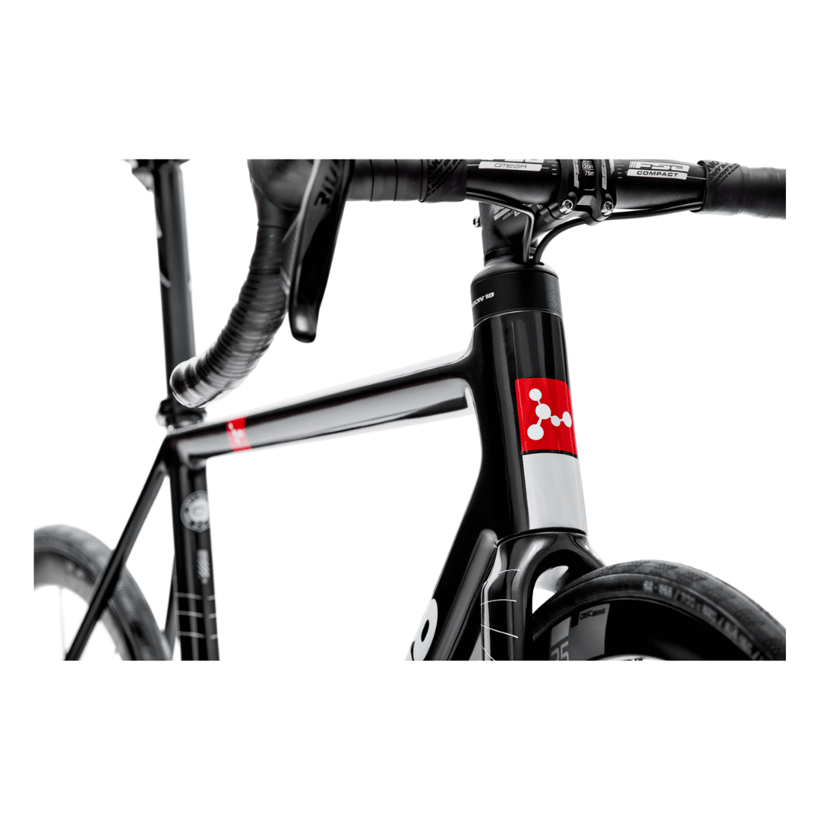

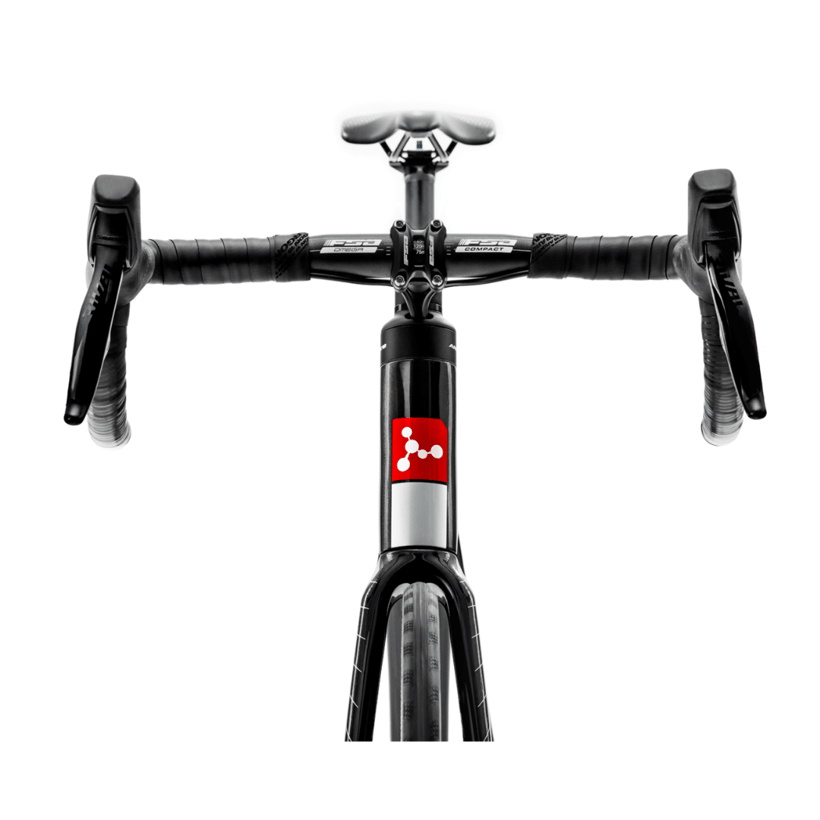

Bicycle ARGON18 Gallium CS Disc Rival22 INT Black Red
Add the code SCARY6 before completing your order and get a -6% EXTRA on this item.
*Coupon valid only TODAY.
The perfect bike to leave your mark on those long days of training, or to dispute the leadership of the group
Building on the technological insights of the Gallium Pro Disc, and now available with a semi-integrated cockpit, the new Gallium CS Disc is the perfect way to make your mark on those long training days. Light, reactive, comfortable, reliable; the ultimate bike.
All the engineering knowledge of our World-Tour level Gallium Pro, in a more accessible package.
The Gallium CS is the perfect way to make your mark on those long training days, or to challenge for the lead of the group. This is the bike that awaits you for your perfect ride, whether it's a grueling climb, a blistering descent, or a full-on sprint to the cafeteria. Easy to master, intuitive in response and pure riding pleasure, the Gallium CS is equally suited to the touring cyclist and the racer.
Ideal for those looking for maximum performance without maximum impact on their wallet - and want to be prepared for that Wednesday night ride that always turns into a KOM quest.
basic technologies
- 3D
- Road Race Geometry
- Argon Fit System
- Cyclosportif Layup
Characteristic
- Maximum tire size: 30mm For optimal comfort and compatibility
- Standard Bottom Bracket: BB86
- Box for semi-internal wiring
- Replaceable Derailleur Hanger: A direct mount hanger is supplied
- Built-in carbon chainstay protector against wear from chain movement
- Argon 18 thru-axles : Clean, simple, light and robust
Setting
- Frame: Gallium CS Disc INT (internal cable routing)

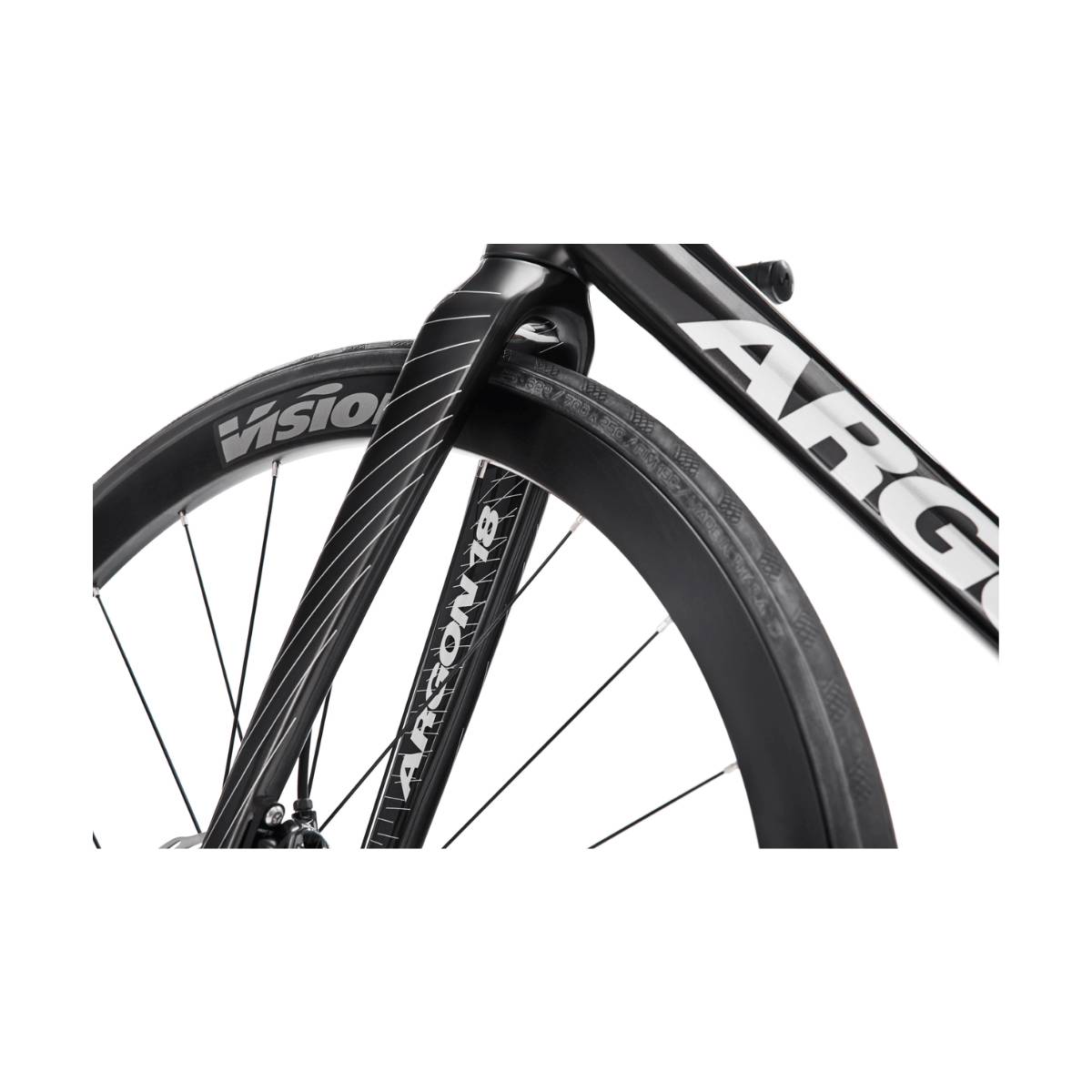

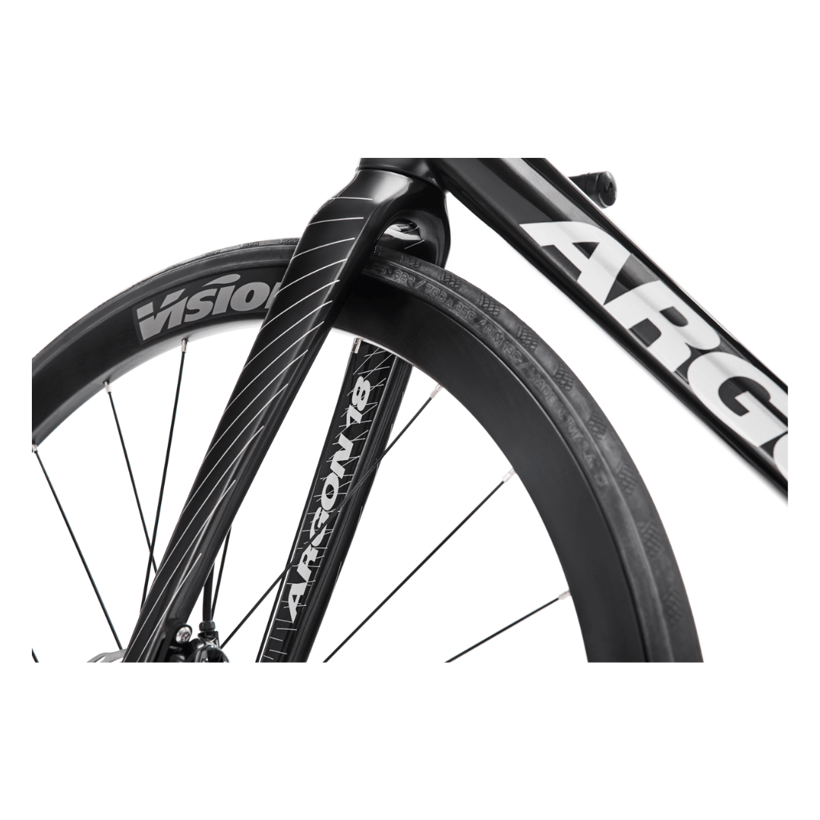

- Fork: Gallium CS Disc
- Seatpost: FSA
- Headset: FSA 37 + 3D + w/ TH881-1
- Bottom bracket: SRAM GXP ROAD 86.5
- Front Derailleur: SRAM Rival 22
- Rear derailleur: SRAM Rival 22 WIFLI
- Crankset: SRAM S390 50/34
- Cassette: SRAM PG 1130 11/32
- Chain: KMC X11
- Wheelset: Vision Team TC 30 6-Bolt
- Tires: Vittoria Zaffiro V 700x28c
- Brakes: SRAM Rival
- Discs: SRAM G2 CleanSweep 140mm
- Brake Levers: SRAM Rival 22 Hydro
- Shifters: SRAM Rival 22 Hydro

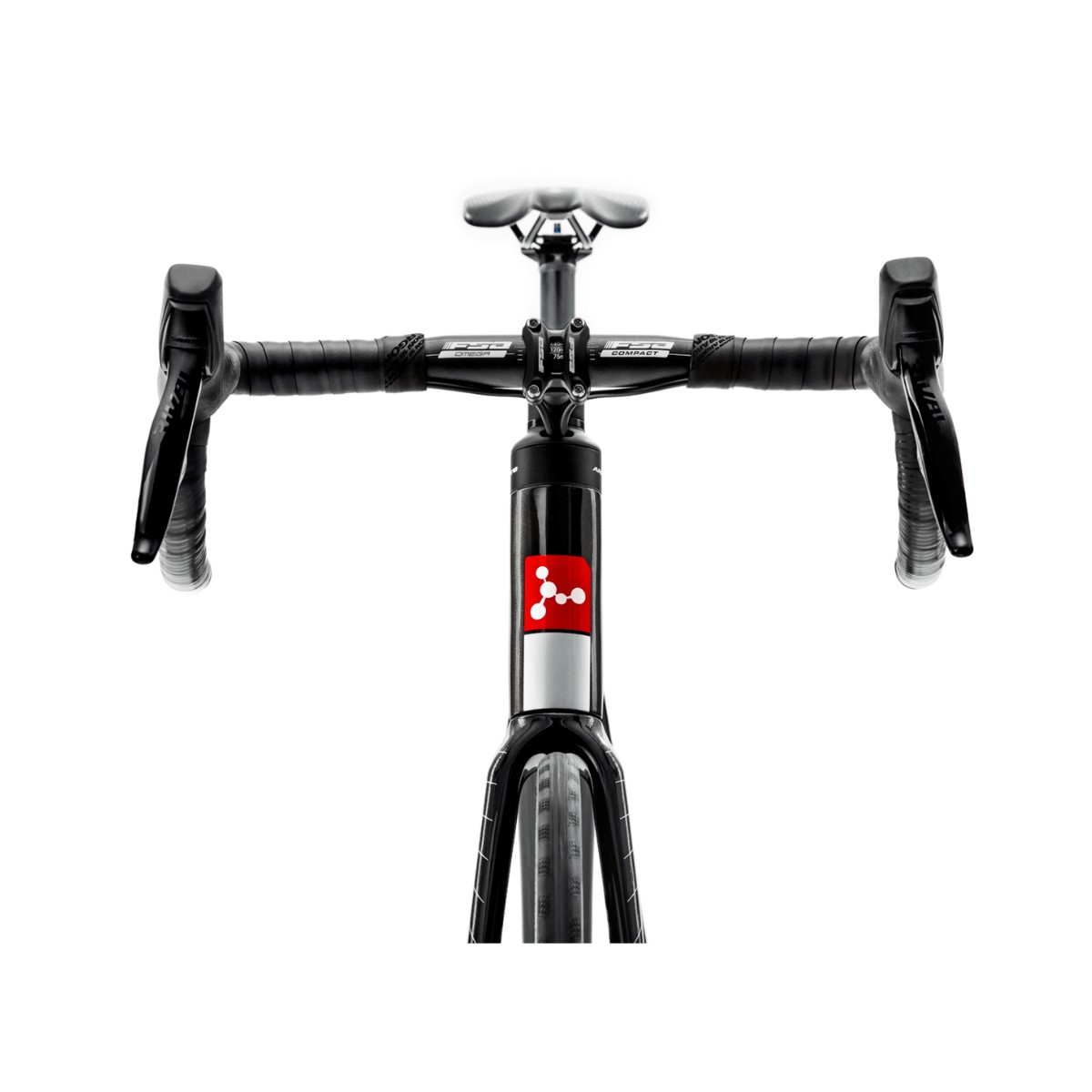

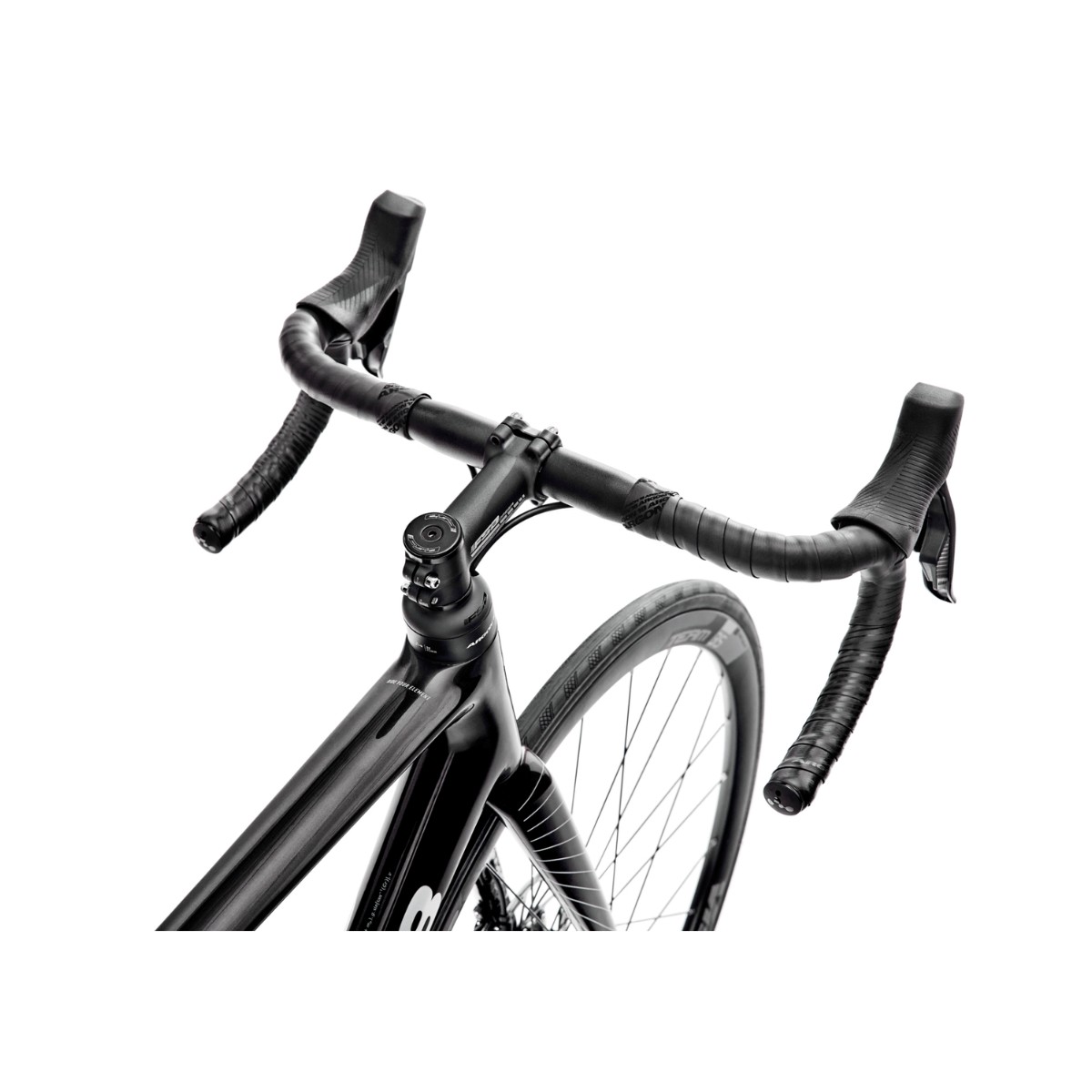

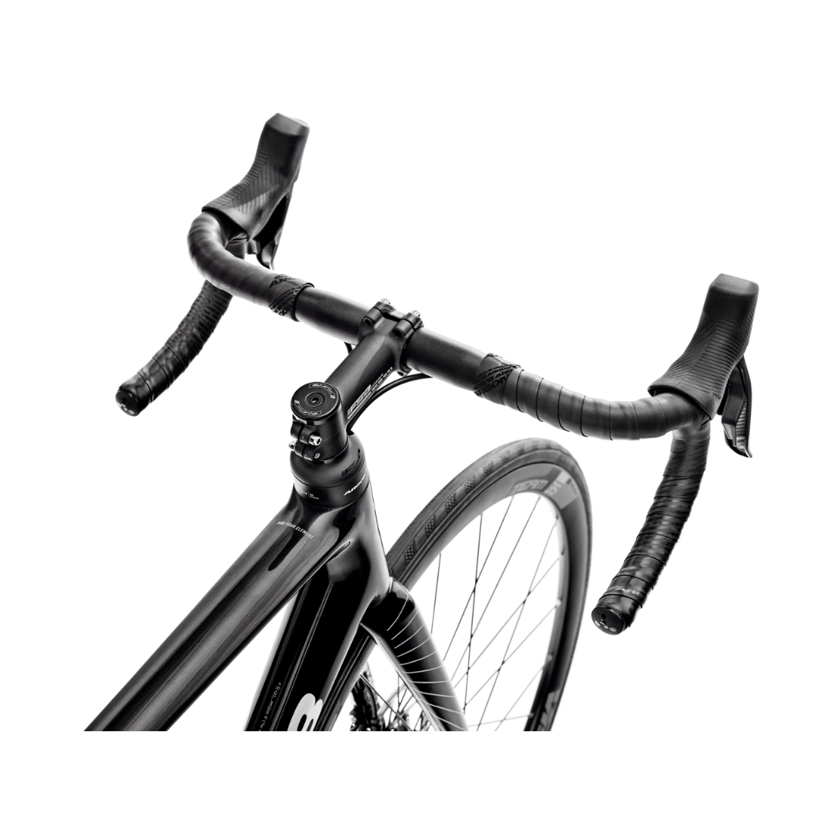

- Handlebar: FSA Vero Compact
- Stem: FSA Omega Pro OS-167
- Handlebar Tape: Prologo Plaintouch Black
- Seatpost: FSA Gossamer
- Saddle: Quasar S
Geometry:
SIZE XXS
Seat tube height (cm) | 42.0 |
Seat tube angle (degrees) | 75.5 |
Head tube angle (degrees) | 71.0 |
Top tube length (cm) | 49.9 |
Chain suspenders length (cm) | 40.6 |
Wheelbase (cm) | 96.1 |
BB drop (cm) | 6.5 |
3D Steerer Tube Length (0mm) | 9.1 |
3D Steerer Tube Length (25mm SRS) | 11.6 |
booth height | 67.4 |
SIZE XS
Seat tube height (cm) | 45.5 |
Seat tube angle (degrees) | 74.5 |
Head tube angle (degrees) | 72.0 |
Top tube length (cm) | 51.9 |
Chain suspenders length (cm) | 40.6 |
Wheelbase (cm) | 96.4 |
BB drop (cm) | 7.0 |
3D Steerer Tube Length (0mm) | 10.1 |
3D Steerer Tube Length (25mm SRS) | 12.6 |
booth height | 70.0 |
SIZES
Seat tube height (cm) | 49.3 |
Seat tube angle (degrees) | 74.0 |
Head tube angle (degrees) | 72.7 |
Top tube length (cm) | 53.9 |
Chain suspenders length (cm) | 40.6 |
Wheelbase (cm) | 97.2 |
BB drop (cm) | 7.5 |
3D Steerer Tube Length (0mm) | 12.6 |
3D Steerer Tube Length (25mm SRS) | 15.1 |
booth height | 73.0 |
SIZE M
Seat tube height (cm) | 53.0 |
Seat tube angle (degrees) | 73.5 |
Head tube angle (degrees) | 72.7 |
Top tube length (cm) | 55.9 |
Chain suspenders length (cm) | 41.5 |
Wheelbase (cm) | 99.7 |
BB drop (cm) | 7.5 |
3D Steerer Tube Length (0mm) | 14.0 |
3D Steerer Tube Length (25mm) | 16.5 |
booth height | 76.4 |
SIZE L
Seat tube height (cm) | 56.5 |
Seat tube angle (degrees) | 73.0 |
Head tube angle (degrees) | 72.7 |
Top tube length (cm) | 57.7 |
Chain suspenders length (cm) | 41.0 |
Wheelbase (cm) | 100.5 |
BB drop (cm) | 7.5 |
3D Steerer Tube Length (0mm) | 18.1 |
3D Steerer Tube Length (25mm) | 20.6 |
booth height | 79.4 |
SIZE XL
Seat tube height (cm) | 59.5 |
Seat tube angle (degrees) | 72.5 |
Head tube angle (degrees) | 73.0 |
Top tube length (cm) | 59.6 |
Chain suspenders length (cm) | 41.0 |
Wheelbase (cm) | 101.6 |
BB drop (cm) | 7.5 |
3D Steerer Tube Length (0mm) | 20.1 |
3D Steerer Tube Length (25mm) | 22.6 |
booth height | 82.0 |
