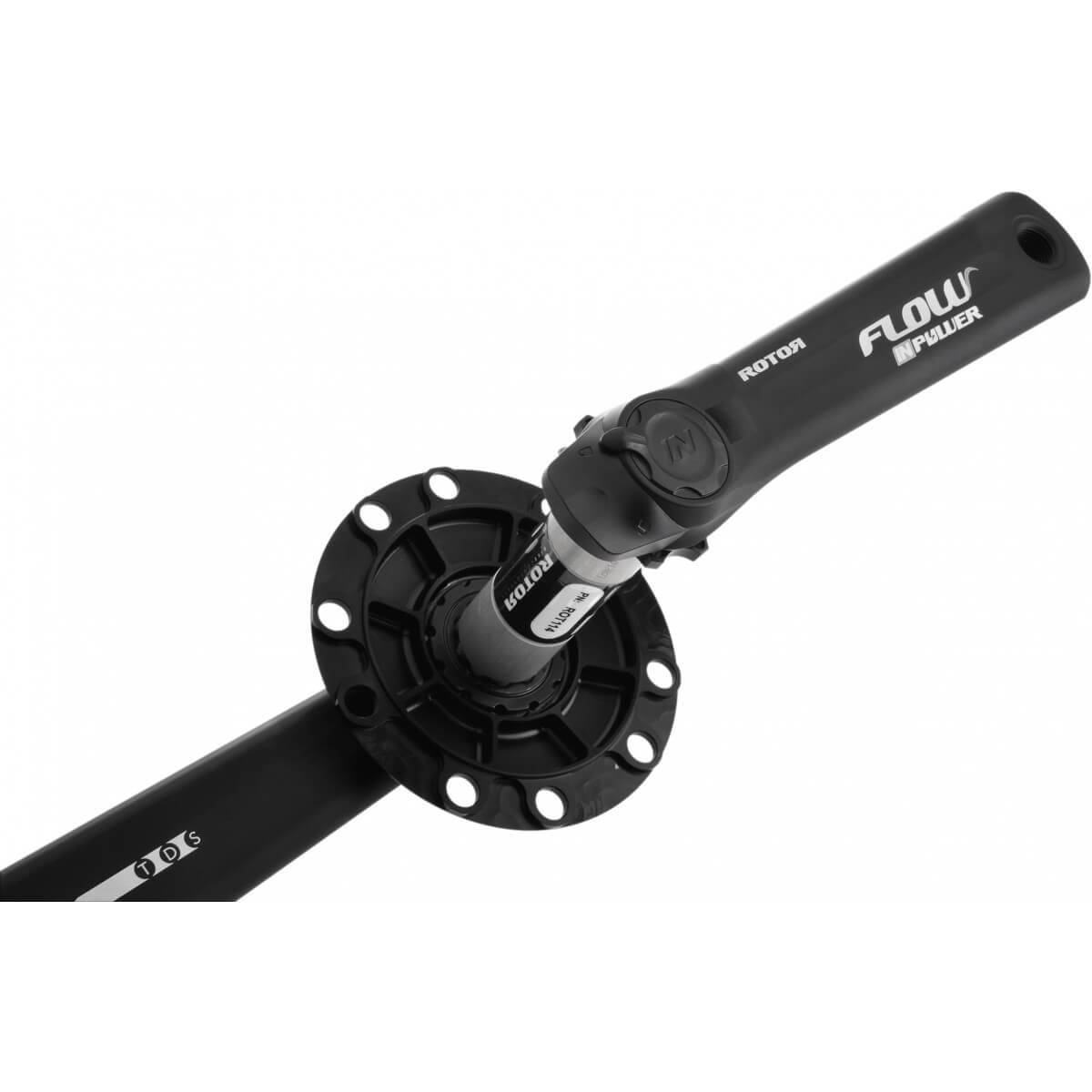

Rotor Flow MAS cranks with INpower BCD 110 power meter
Aerodynamic cranks with power meter built into the left crank and data transmission via ANT +. It quantifies the power exerted, the cadence, the effectiveness of the torque, the uniformity of the pedaling, the distribution of the power at the different angles and the optimal position for Q-Rings chainrings in case of mounting them.
Weight without batteries: 597gr. (170mm)
Rotor Flow MAS cranks with INpower BCD 110 power meter
CNC machined 7055 aluminum aero profile crankset, with 30mm aluminum axle, MAS (Micro Adjust System) aerodynamic spider and power meter integrated into the left crank.
Using ANT + wireless technology, it transmits the data of power, cadence, torque effectiveness and pedaling smoothness (left side only), TORQUE 360 (graph showing the power arrangement during a full pedal stroke), OCA (determines the angle where we exert the maximum force and therefore, what OCP position should we use in the Q-Rings chainrings, if they are mounted, to obtain the maximum performance). The MAS spider allows us to fine-tune the position of the Q-Rings thanks to its half positions (2.5º variation).
It uses a 1.5V AA battery, easy and inexpensive to acquire, which provides an estimated autonomy of 300 hours, exceeding the IPX7 standard for water resistance.
Available in 170/175 lengths it mounts a 110 BCD spider and 5 anchors, displaying a Q-Factor of 148mm.
They can mount 9, 10 and 11 speed oval or round chainrings. With a 43.5mm chainline, they are compatible with BSA, ITA, BB86, BB30, BB30A, PF30, BBRight, BB386 Evo bottom brackets
Weight without batteries: 597gr. (170mm)
Ref .: C13-023-19010-001
