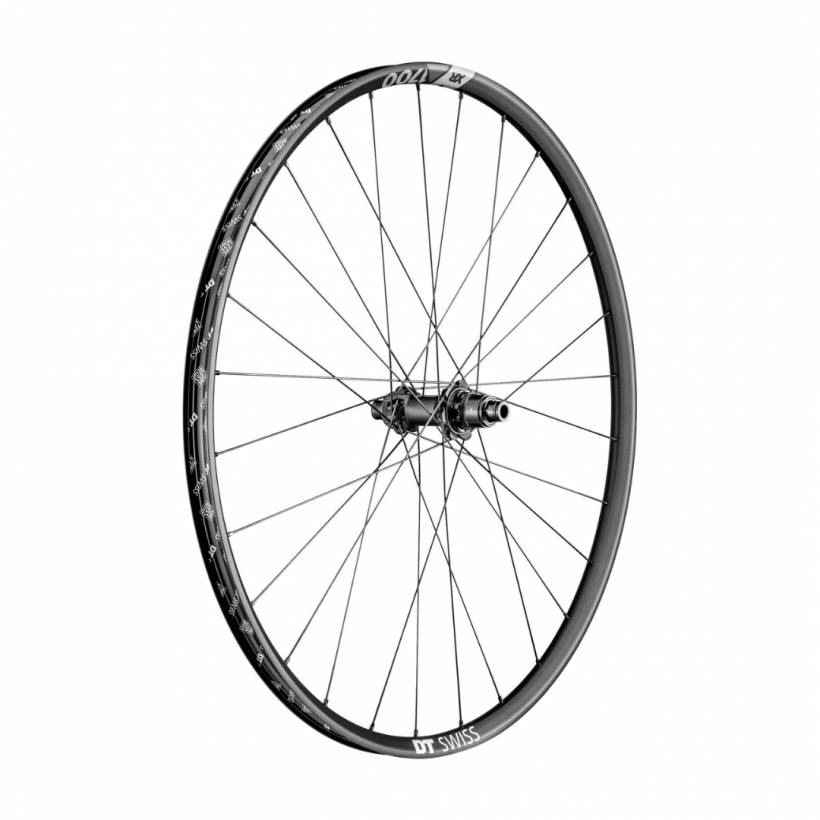

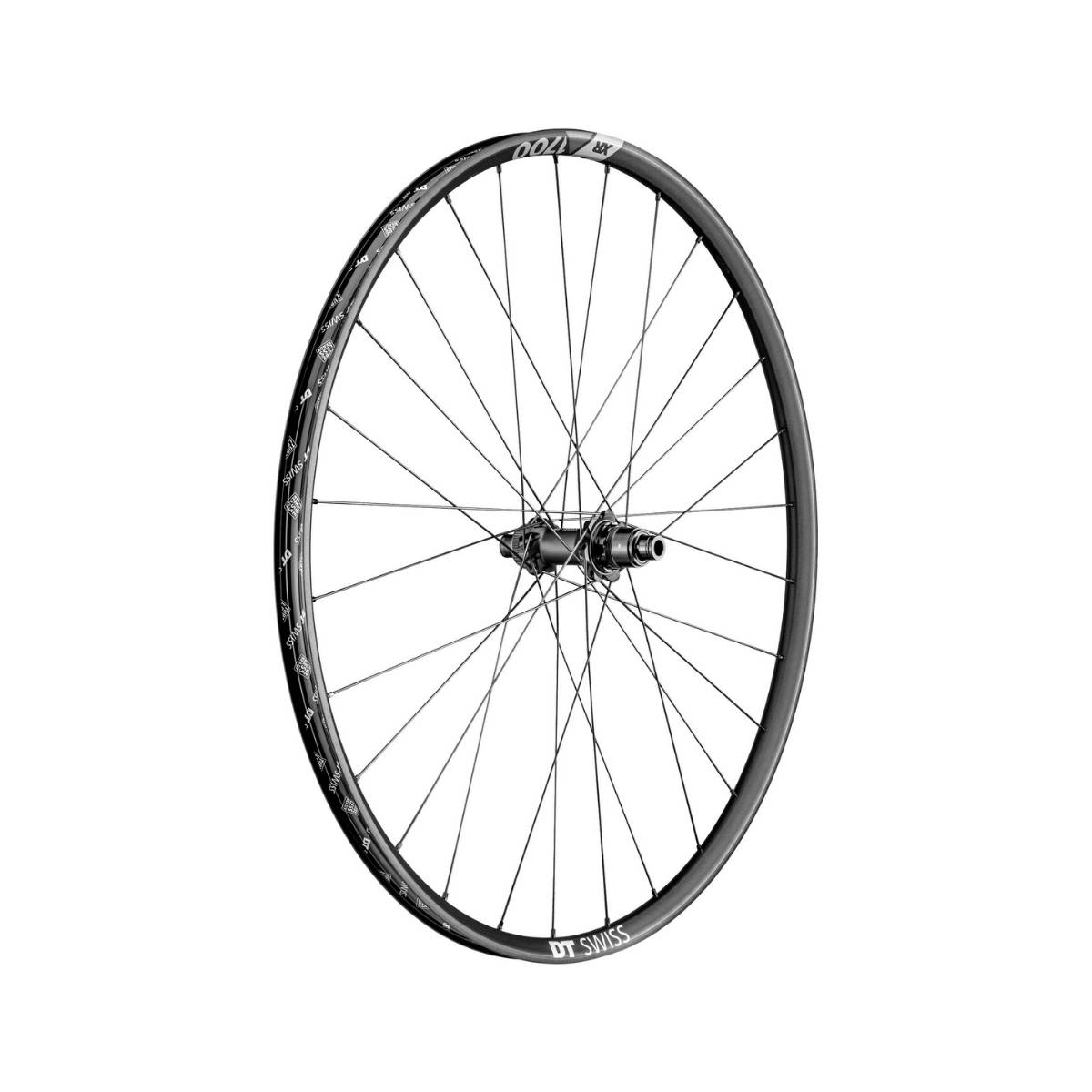

DT Swiss XR 1700 Spline 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
DT Swiss XR 1700 Spline 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
The XR 1700 SPLINE are the high speed Cross Crountry wheels with lightweight, welded aluminum rims and a precision Swiss finish.
Hub Type: 350 w / Ratchet System 36SL
Rim: Aluminum, Tubeless crotched / clincher TC
Inside rim width: 25mm
Spokes: DT competition® straightpull
DT Swiss XR 1700 Spline 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
The XR 1700 SPLINE are the high-speed Cross Crountry wheels with lightweight, welded aluminum rims, with reliable 36d RATCHET SL hubs and a precision Swiss finish. With racing spokes and iconic DT Swiss quality in wheel construction. Perfect for competing day after day, whether in competition, against your friends or against you.
Hub Type: 350 w / Ratchet System 36 SL
Rim: Aluminum, Tubeless crotched / clincher TC
Inner rim width: 25mm
Spokes: DT competition® straightpull
SPECS
general
Net weight | 881 g |
Recommended maximum weight | 110 kg |
ASTM Classification | 3 |
Tire
Material | Aluminum |
Tire interface | Tubeless crotched / Clincher TC |
Valve hole | Lend |
Wheel diameter | 29 "/ 700C |
Sticker type | Waterslide |
Inside rim width | 25 mm |
Outer width | 29 mm |
Cross section
Bushing
Hub type | 350 |
Axle system | 12mm Thru Axle |
Installation width | 148mm Boost |
Brake system | Disc Center Lock |
Core | SRAM XD MTB (ASRAM) or Shim. 12SP Light (ASL12) |
Core type | Ratchet System 36 SL |
Spokes and nipples
Left side spokes | DT competition® Straightpull |
Right side spokes | DT competition® Straightpull |
Radiated | Three-cross (1: 1) |
Ringleaders | DT Prolock Squorx ProHead alu |
The kit includes:
- Tubeless tape 27 mm
- Tubeless valve MTB 32 mm
- IS 6-bolt adapter MTB
REFERENCE: WXR1700BEIXSA12046 (SRAM) / WXR1700TED2SA12047 (SHIMANO)
