Look Keo 2 Max Pedals Black

Look Keo 2 Max

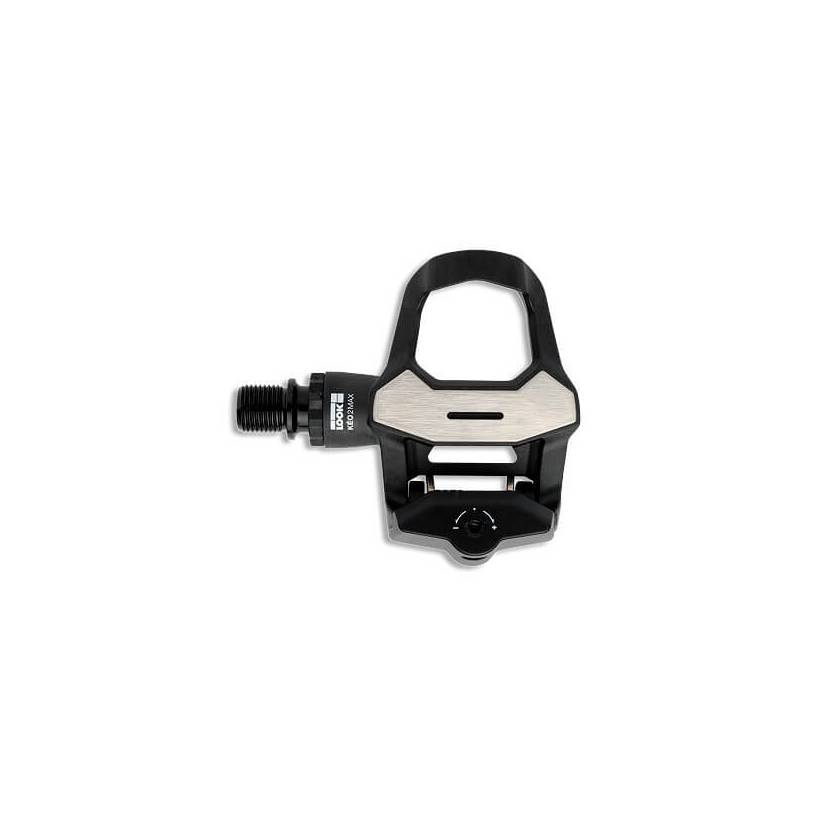

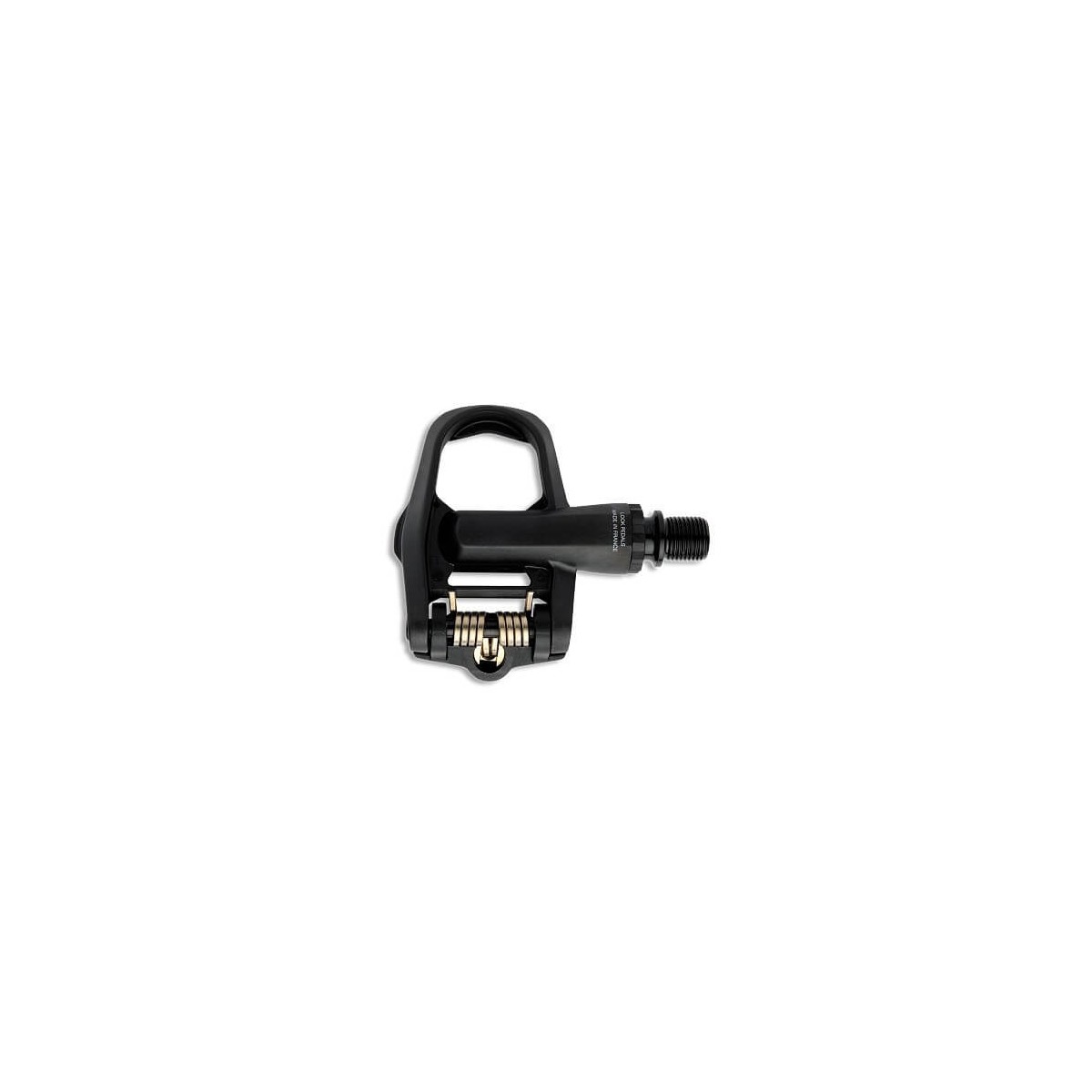

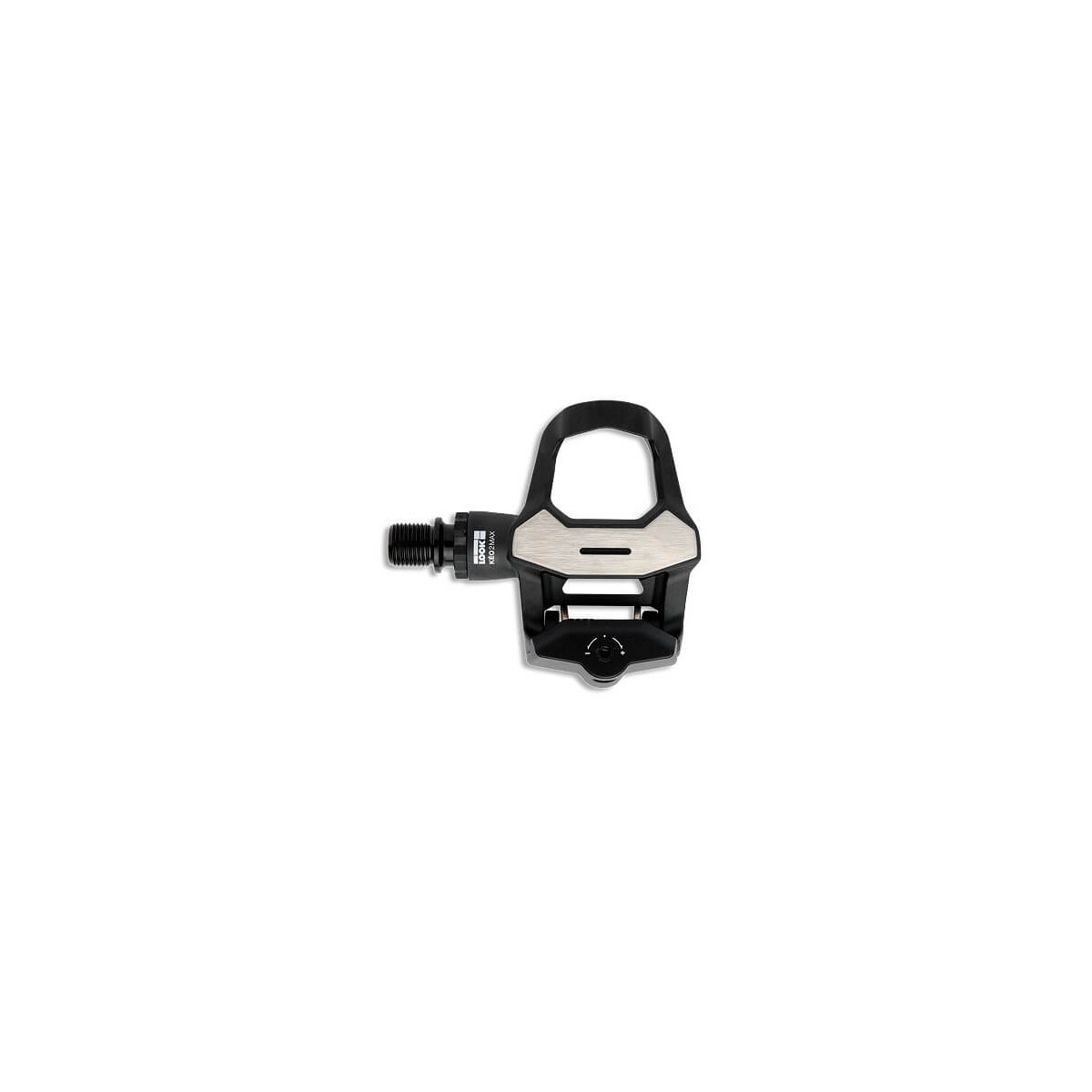

Look Keo 2 Max pedals with very resistant stainless steel bearing surface and oversized Cromoly axle. It is a lightweight 130 gram pedal with adjustable tension from 9 to 15.

Characteristics:

• Use: Road (from leisure to competition)
• Body: Composite
• Shaft: Steel
• Threading: 9/16 x 20 mm.
• Bearing: 2 ball bearings and 1 needle bushing
• Shaft / sole height: 15.7 mm.
• Pedal / crank axle distance: 53 mm.
• Multi-tensioner: Yes, adjustable from 9 to 15 mm.
• Cleats: Kéo Grip cleats
• Angular freedom: 0, 4.5 or 9 degrees depending on the cleat (black, gray or red color)
• Pedal weight: 130 gr. (328 gr. With cleats and screws)
• Colors: Graphite body / Black lever
• Accessories: Supplied with the pedals, a pair of gray Keo Grip cleats and hardware (6 5 x 11 mm screws and 6 washers)

The Look Keo 2 Max pedals have a support surface 12% more important than a Kéo Carbon for a more efficient and comfortable pedaling. In order to further improve the transmission of effort and the life of the pedal, this surface is made of stainless steel overmolded on the pedal body.

At 130 grams, the Look Keo 2 Max is one of the lightest pedals in its class. This has been possible thanks to the use of composite materials that allows combining weight savings and improved resistance.

The axle line of the Keo 2 Max allows the support height to be maintained while using an oversize steel axle. It is made up of 2 miniature ball bearings (12 mm inside x 18 mm outside) and a needle bushing. Look axles are only validated after a 1 million cycle rotation test at 100 rpm with a 90kg load at the center of the pedal and off-center rotation (creating a crash every turn). This test is much higher than the current EN14781 standard.

In Look Kéo 2 Max pedals, particular attention has been paid to reliability: a composite body, stainless steel bearing surface, oversized axle and double sealing make this pedal a very safe and durable product.

Thanks to its 14 mm length thread, the new Look shaft allows an additional 2 mm Q-Factor adjustment using a specific washer available as a spare part. It thus goes from 53 to 55 mm.

REFERENCE NUMBER: 00016079
