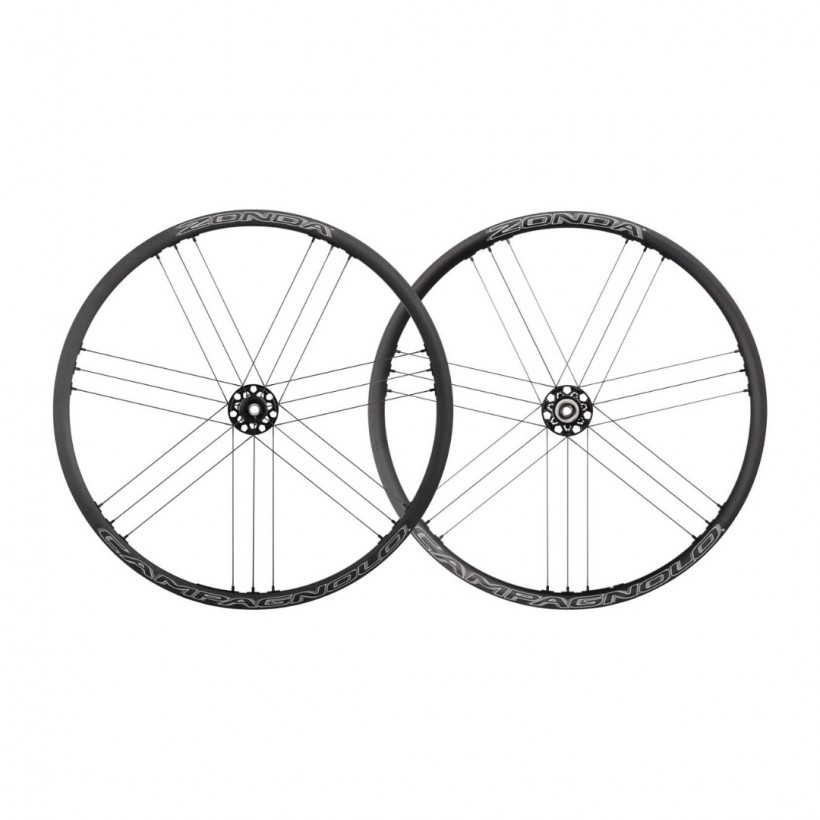

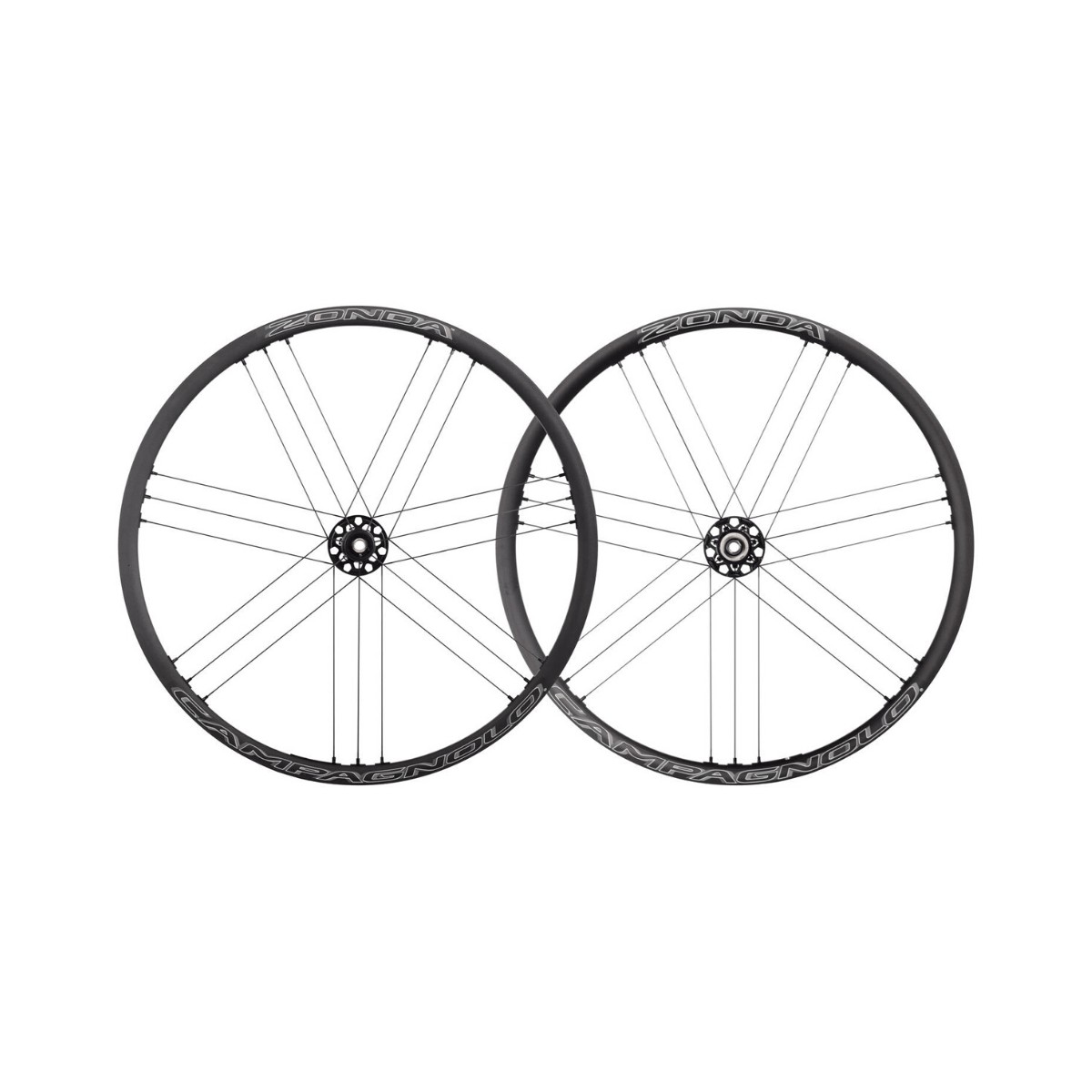

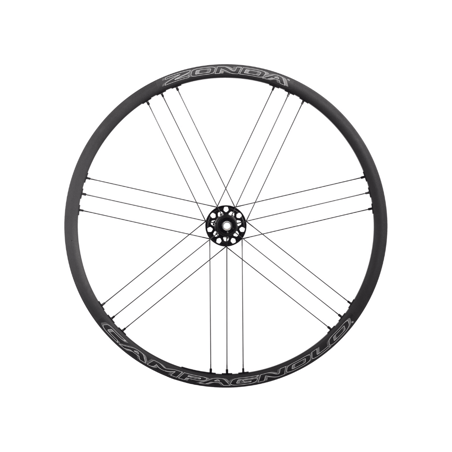

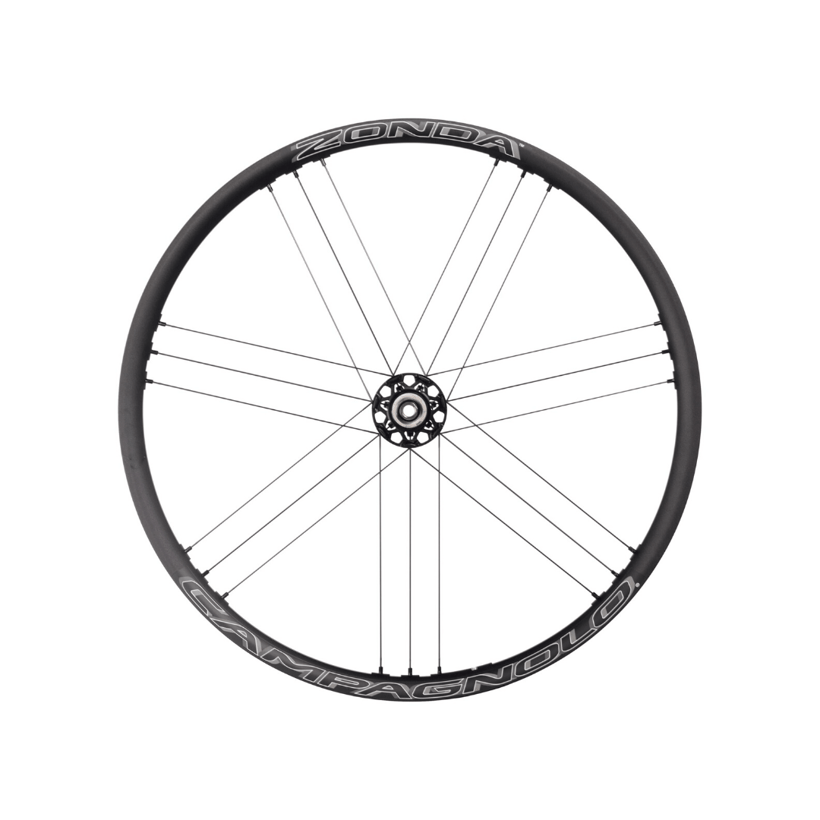

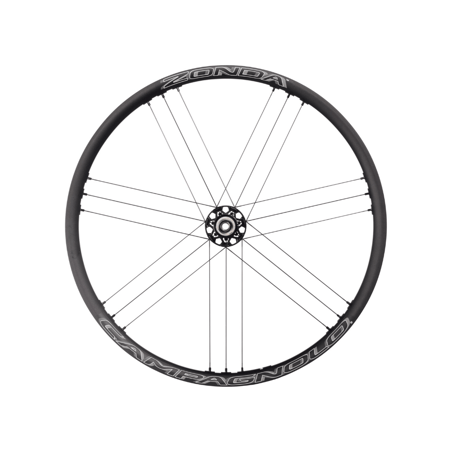

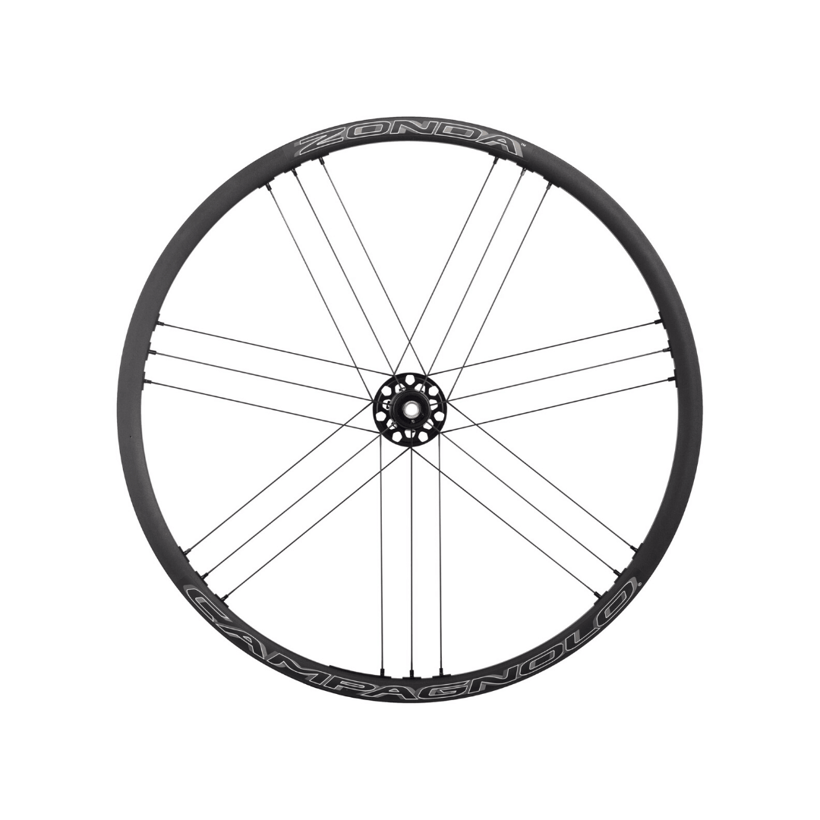

Campagnolo Zonda DB Disc AFS Wheelset
The Campagnolo Zonda DB Disc AFS Wheelset is a benchmark among mid-range aluminum disc brake wheels thanks to its lightness-reliability-cost ratio.
Completely redesigned structure specifically for bikes with disc brakes.
Campagnolo Zonda DB Disc AFS Wheelset
Campagnolo Zonda DB Disc AFS wheels stand out for their unbeatable balance between lightness and resistance, inheriting the successful aesthetics and competitive cost of the traditional rim brake version.
The result is improved reactivity in all respects, especially thanks to the use of asymmetric rims and Mega G3 â„¢ hubs on both wheels. With this innovative solution, we have achieved a stable front wheel, capable of absorbing the energy of the braking torque generated on the left side, and a rear wheel capable of guaranteeing maximum power transmission for the rider.
Main advantages:
Maximum compatibility: AFS and 6 screws using adapters, to guarantee full compatibility with all discs available on the market.
Reliable: - G3 â„¢ technology is also applied to the front wheel, designed to ensure the best performance even under the most powerful braking.
Accessible features: - Excellent rigidity, thanks to the G3 system, the milled rim and the innovative RDB balancing system.
Specifications:
Radiated:

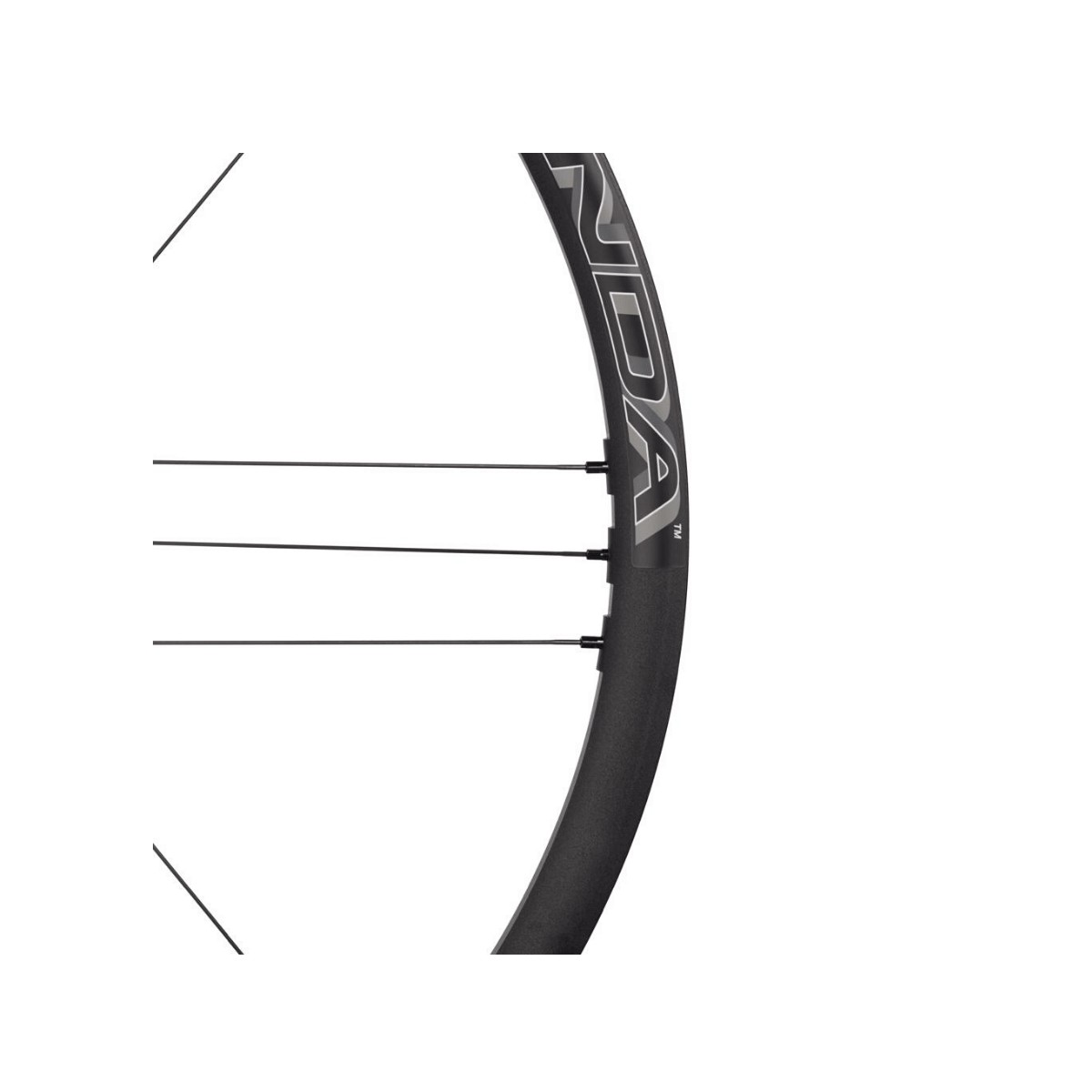

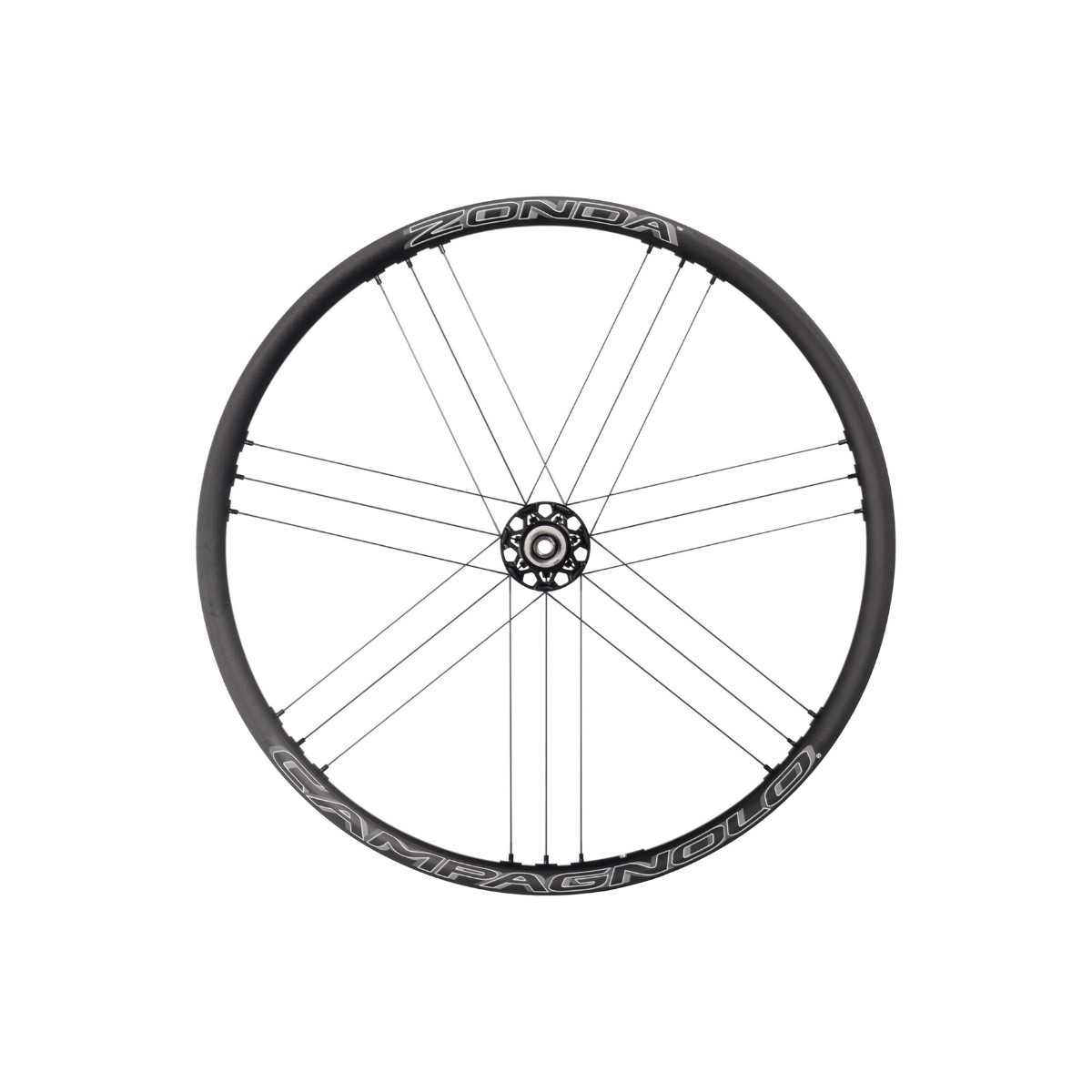

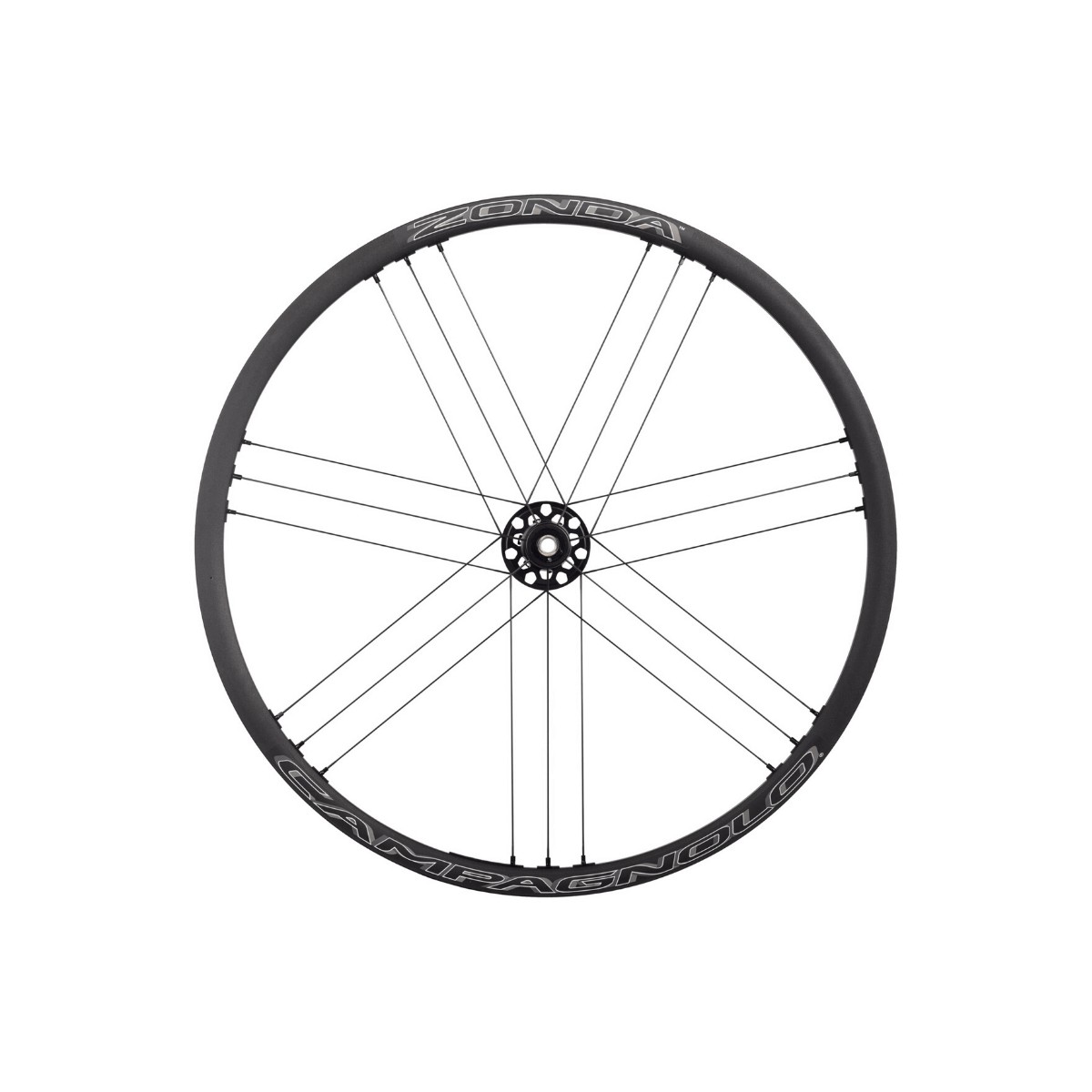

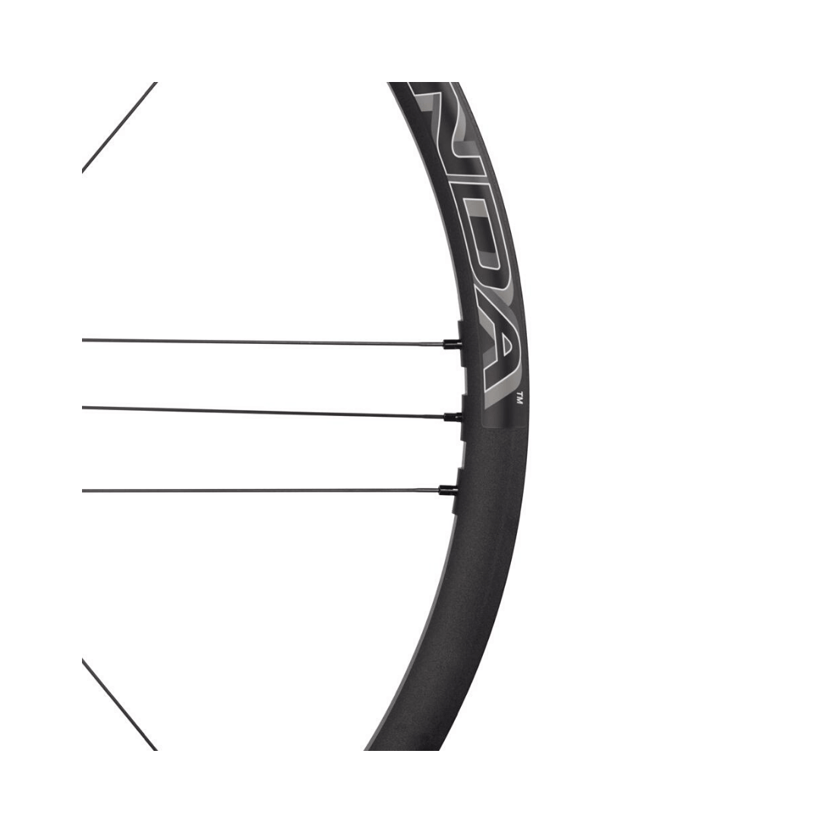

- Front: 16 aero spokes in radial arrangement in stainless steel with variable section
- Rear: 21 aero spokes with stainless steel variable section duplicated on the side of the cassette
- RDB
- Spokes with aerodynamic steel profile
- Exclusive MEGA-G3 radio arrangement
- Anty-Rotation System
- Self-locking nipples
Compatibility:
- Campagnolo 9/10/11 body
- HG 9/10/11 body
- Compatible with HH12, QR and 135 and 142 rear thru axles
- Direct AFS (Centerlock) disc anchor, and 6 screws via adapter (not included)

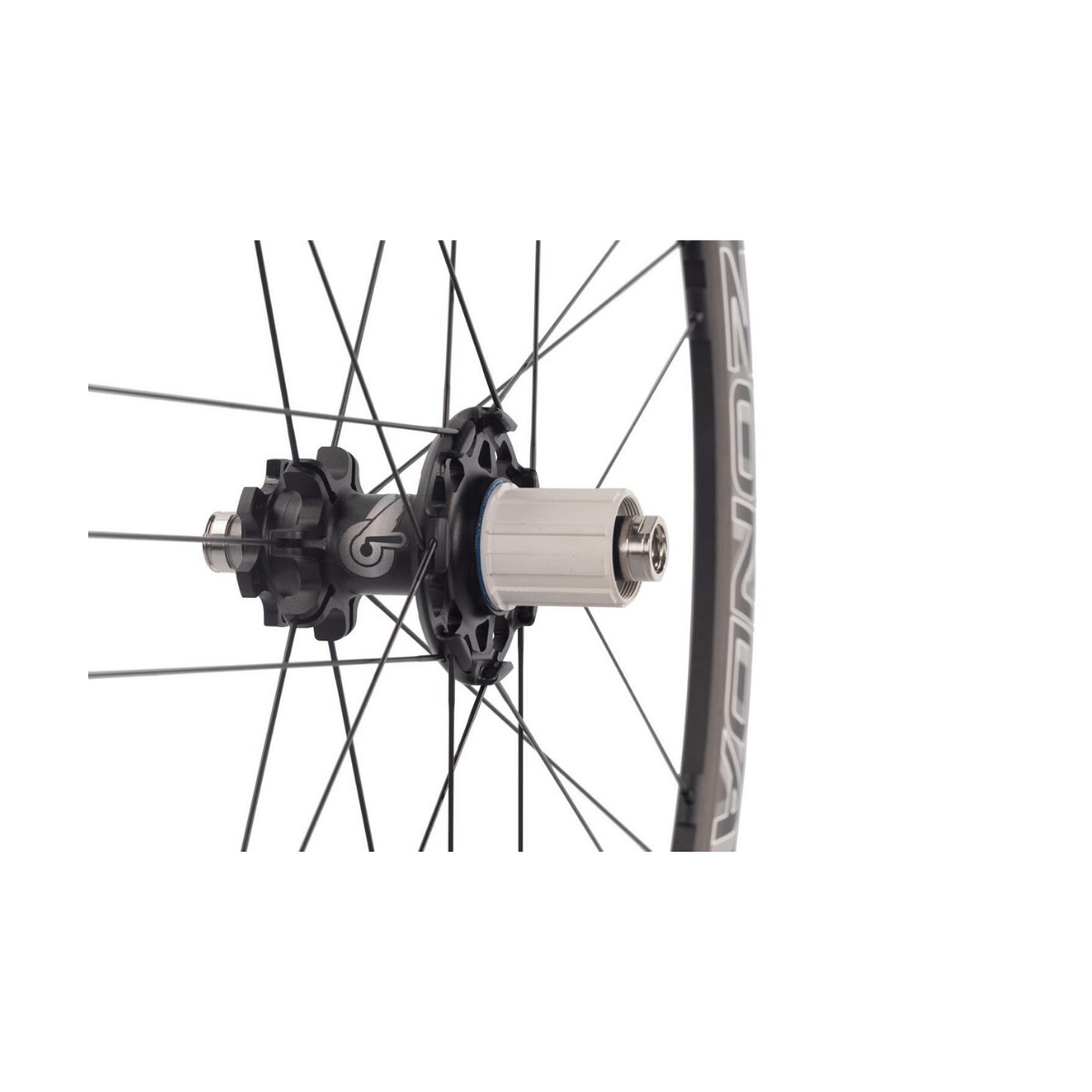

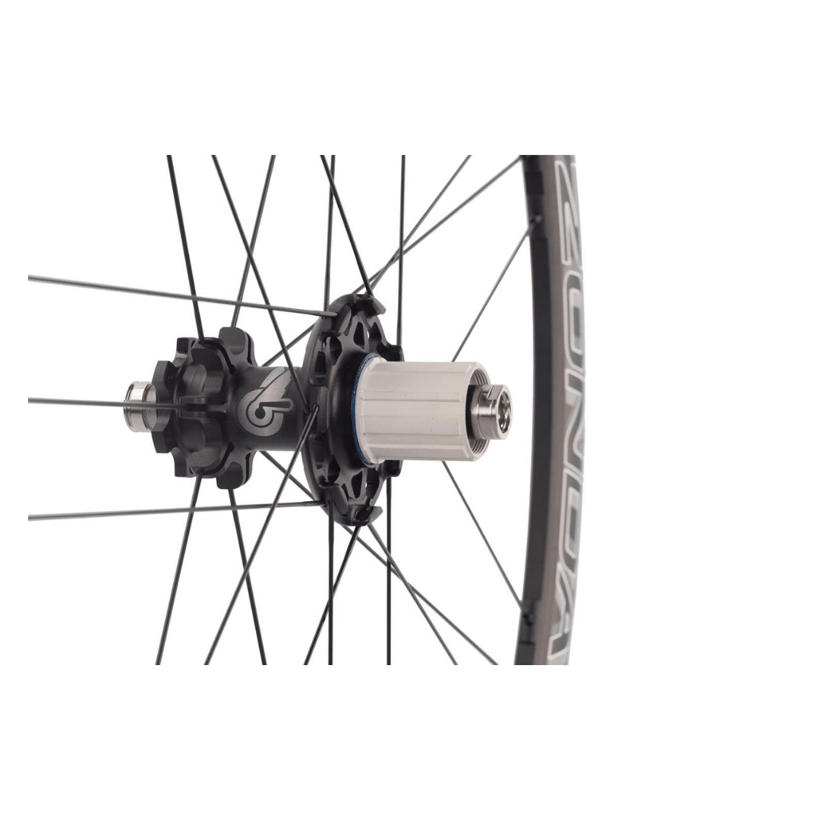

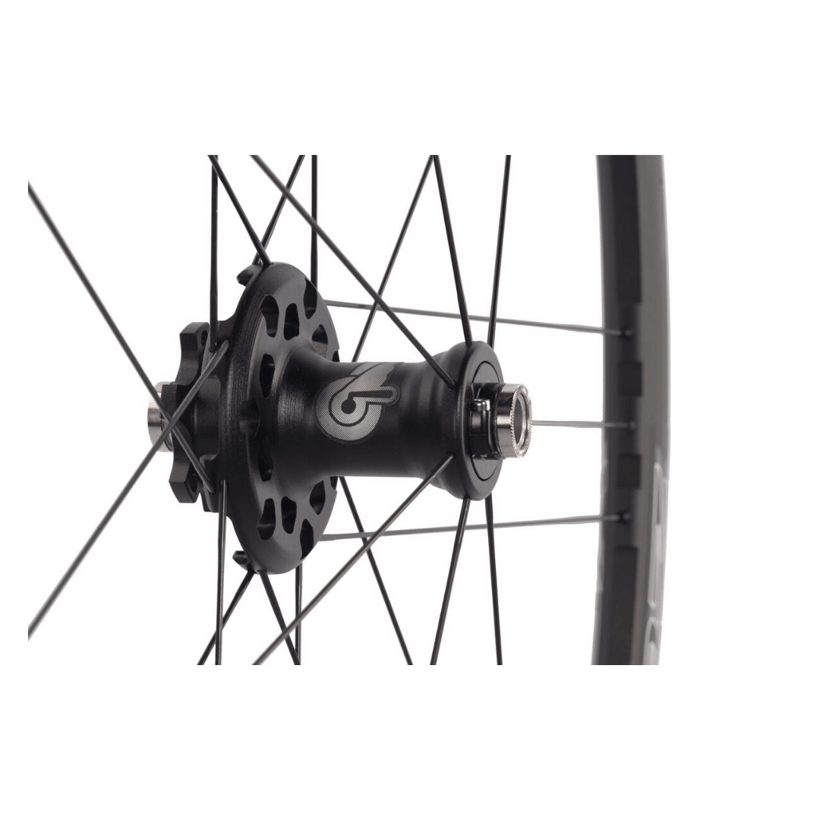

Bushing:
- Black aluminum hub
- Steel bearings
- Hub width: 100mm front and 135 / 142mm rear
- Oversized flange
- Cone / cup bearing system
Tire:

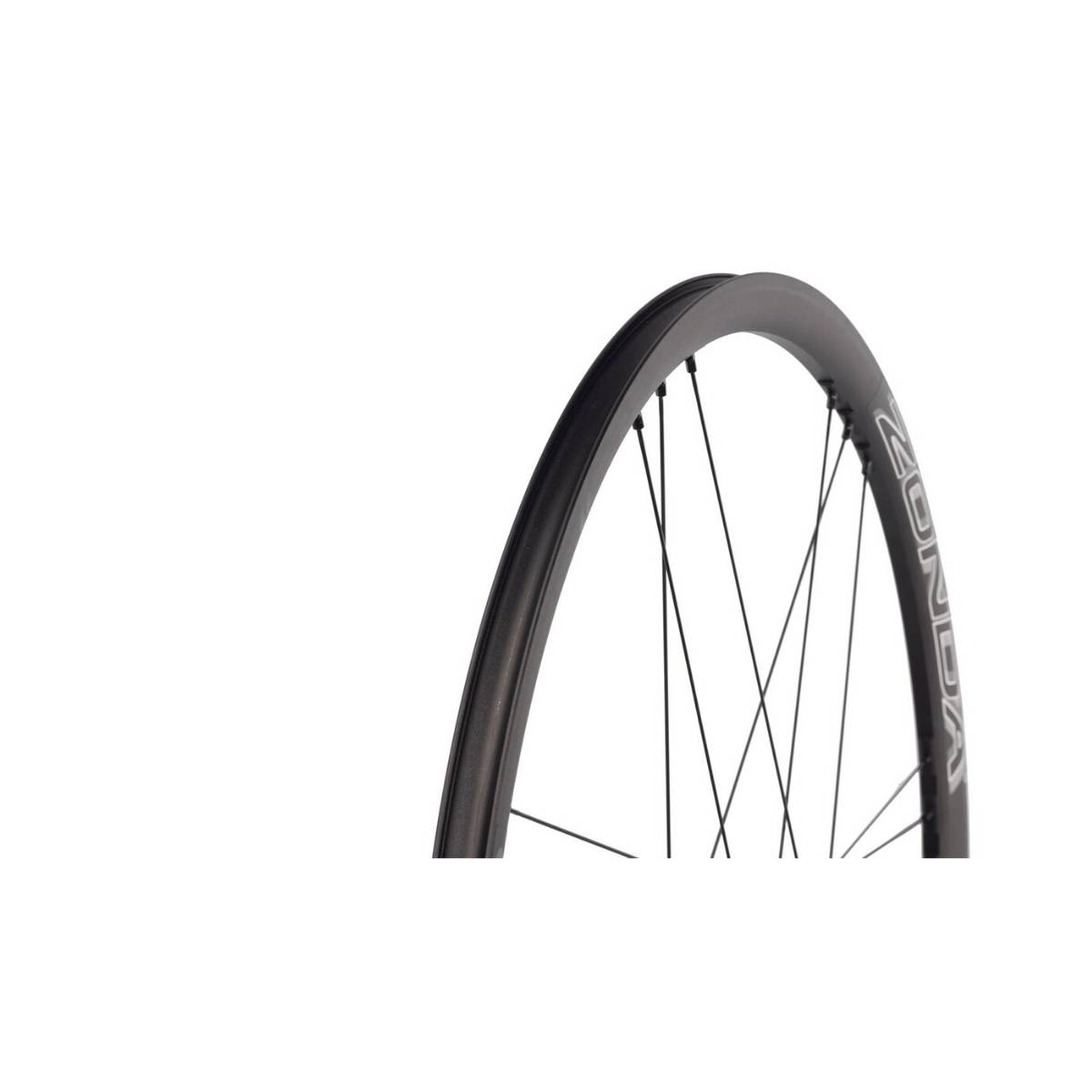

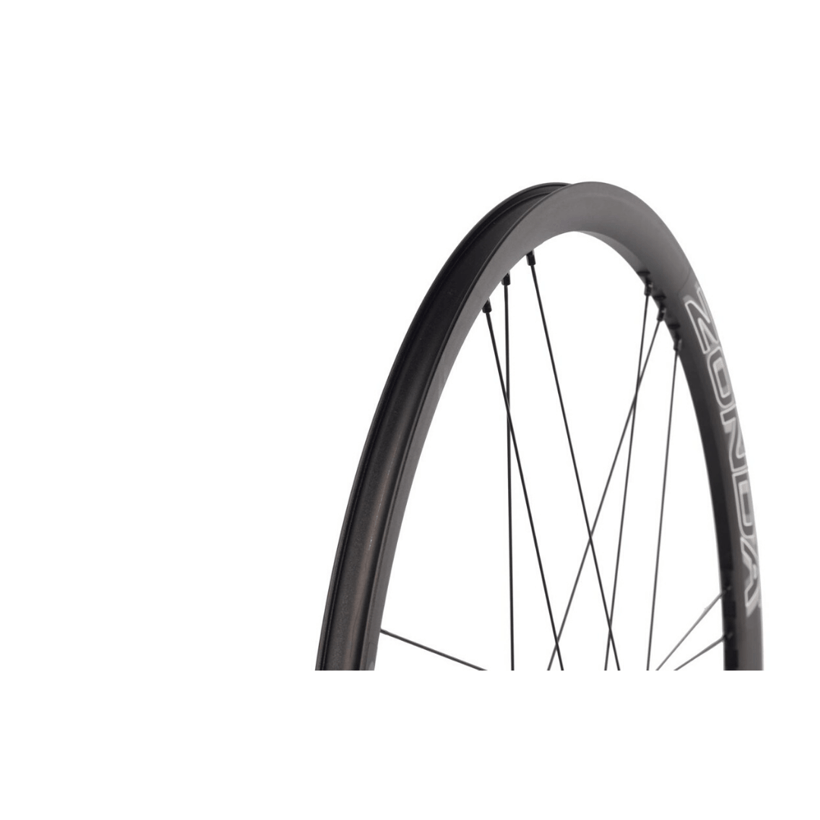

- Different rim heights: 24 / 27-27 / 30 mm
- Profile width: 22 mm
- Rim material: Aluminum
- Graphics colors: Bright Label
It includes:
- User's manual
- 142/135 mm rear adapter kit (HH12 version)
Weight: 1675 g
