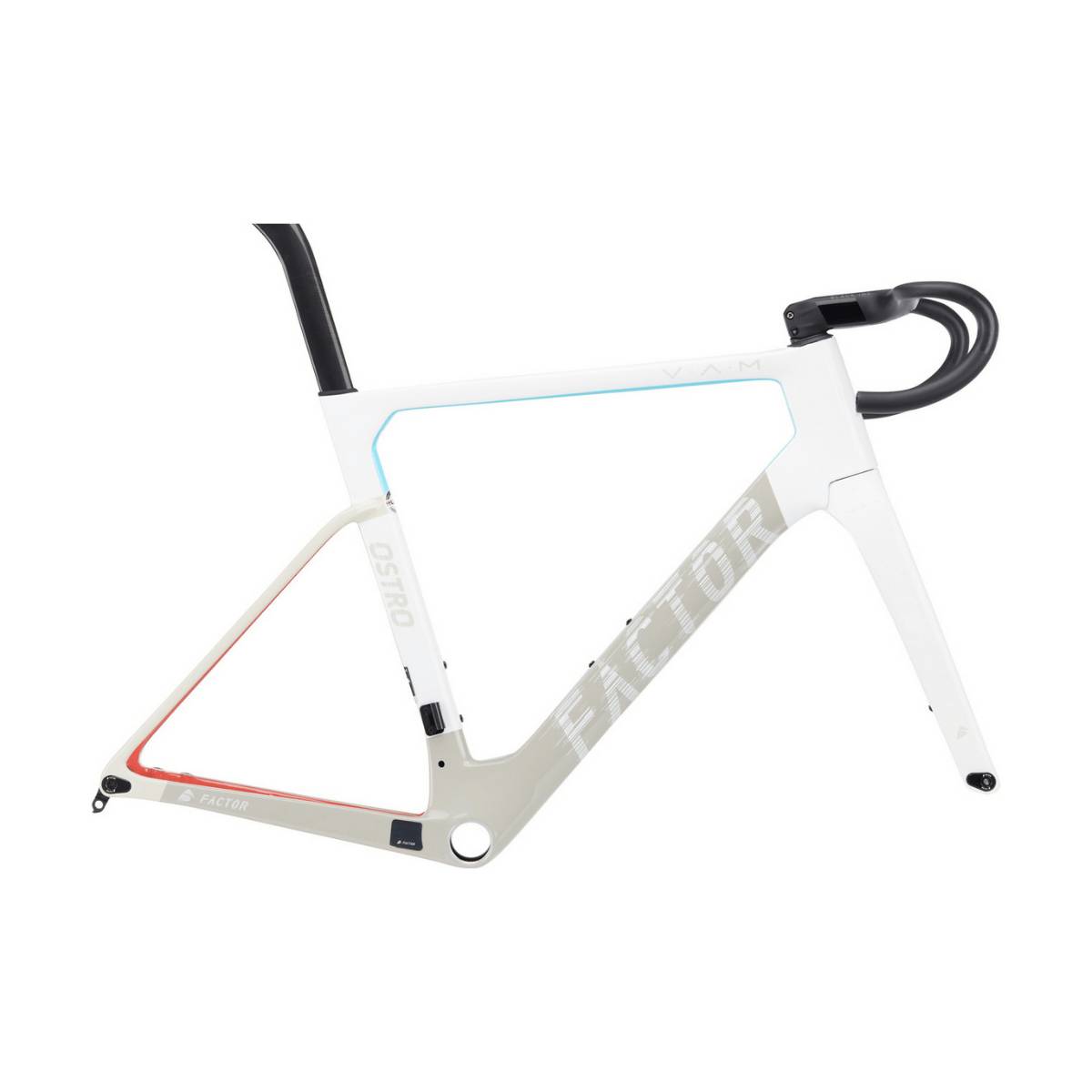

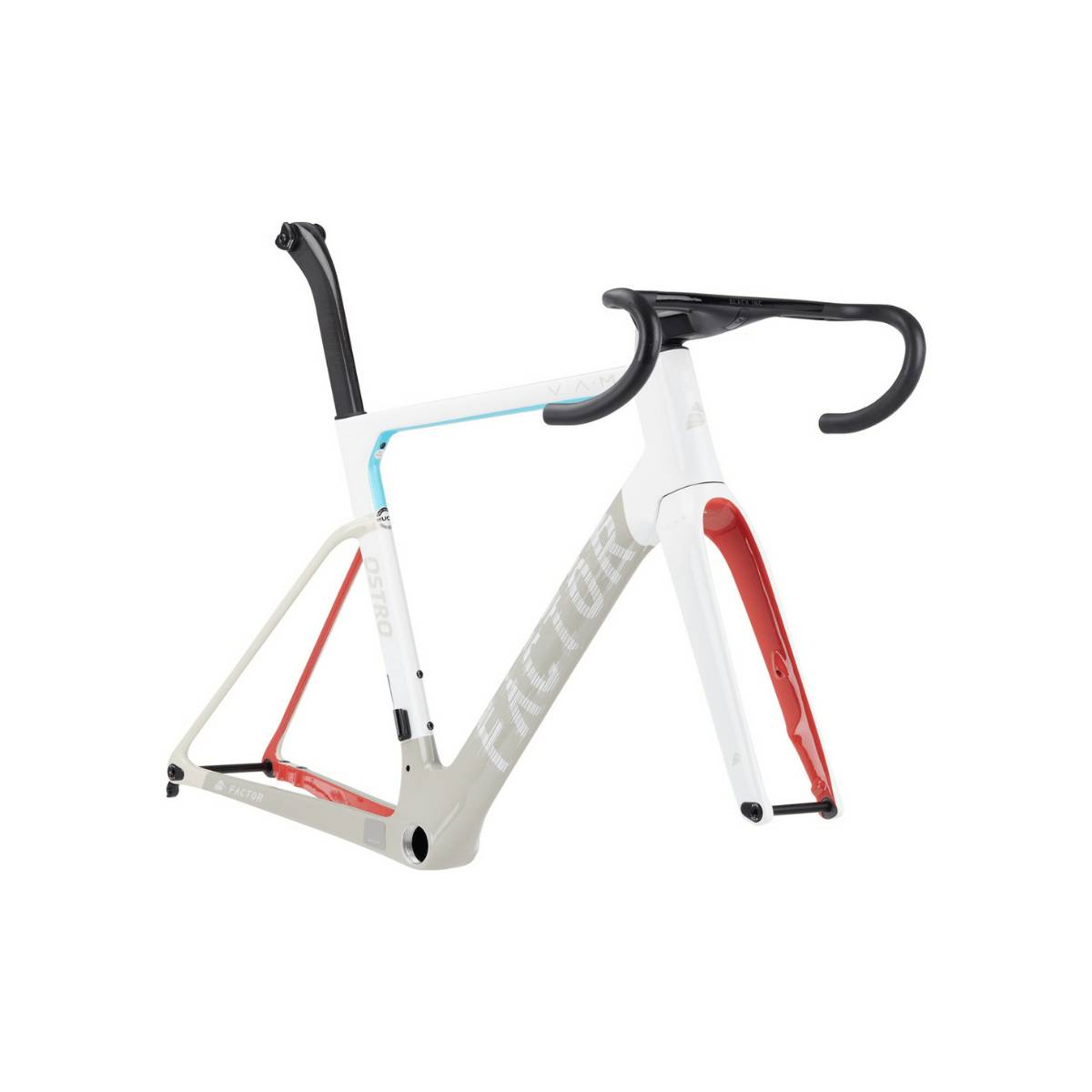

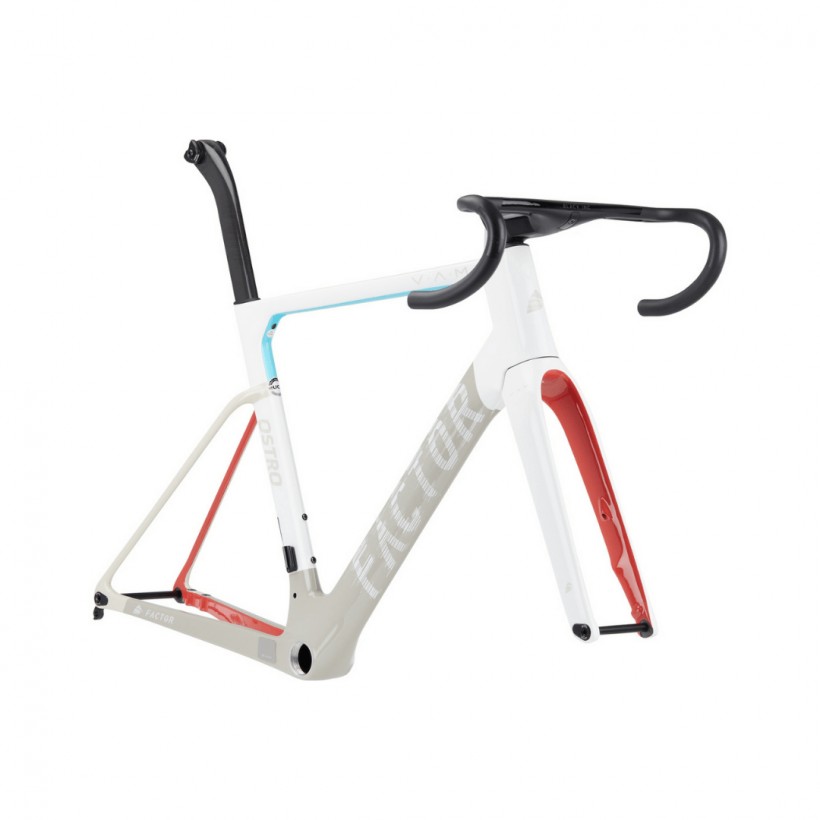

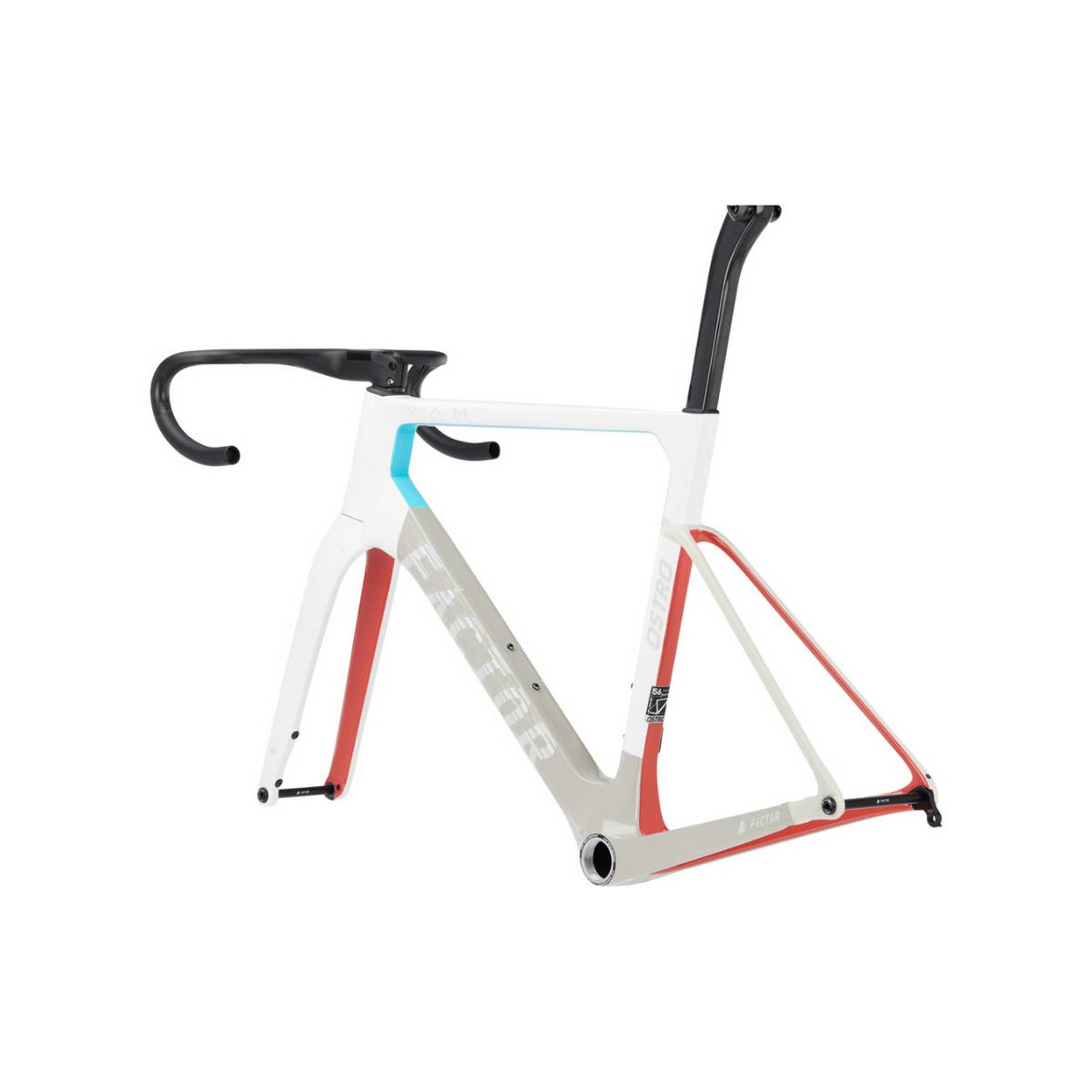

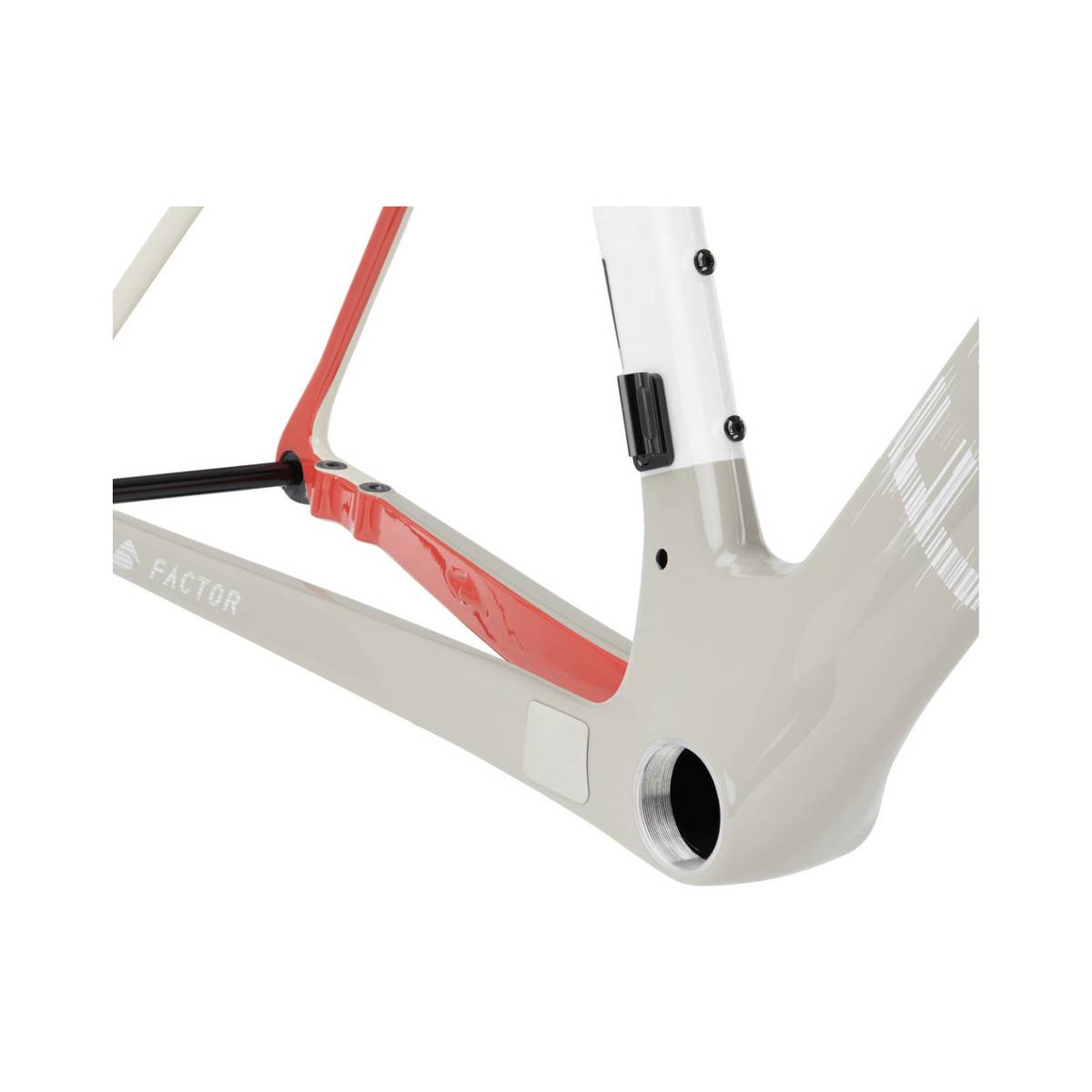

Factor Ostro VAM Disc Carbon Frame & Fork Set White Soho Mix
The Factor OSTRO frame is a frame for everything, an “all-rounder”, out of the ordinary in its field. Incredibly fast and light without sacrificing supreme comfort. Ready to win sprints, mountain stages and Flanders Classics.
Factor Ostro VAM Disc Carbon Frame & Fork Set White Soho Mix
The Factor OSTRO frame is a frame for everything, an “all-rounder”, out of the ordinary in its field. Incredibly fast and light without sacrificing supreme comfort. Ready to win sprints, mountain stages and Flanders Classics. If you are the type of rider who likes to compete at the highest level, this is the bike you have been waiting for.
Characteristics:
- - Wheel size: 28 "
- - Frame Material: Carbon
- - Fork Material: Carbon
- - Weight limit: 120 kg Total weight
- - Maximum brake disc size: 160 mm
- - Maximum tire size: 32-622 (700x32C)
- - Number of plates: 1 speed, 2 speeds
- - Maximum chuck size: 55 teeth
- - Colour: white soho mix
Specifications
- - Standard wheels: 12 x 142 mm (standard)
- - Standard axle: 12mm thru axle
- - Headset: IS41 / 28.6 - IS49 / 37 (36) (top to bottom)

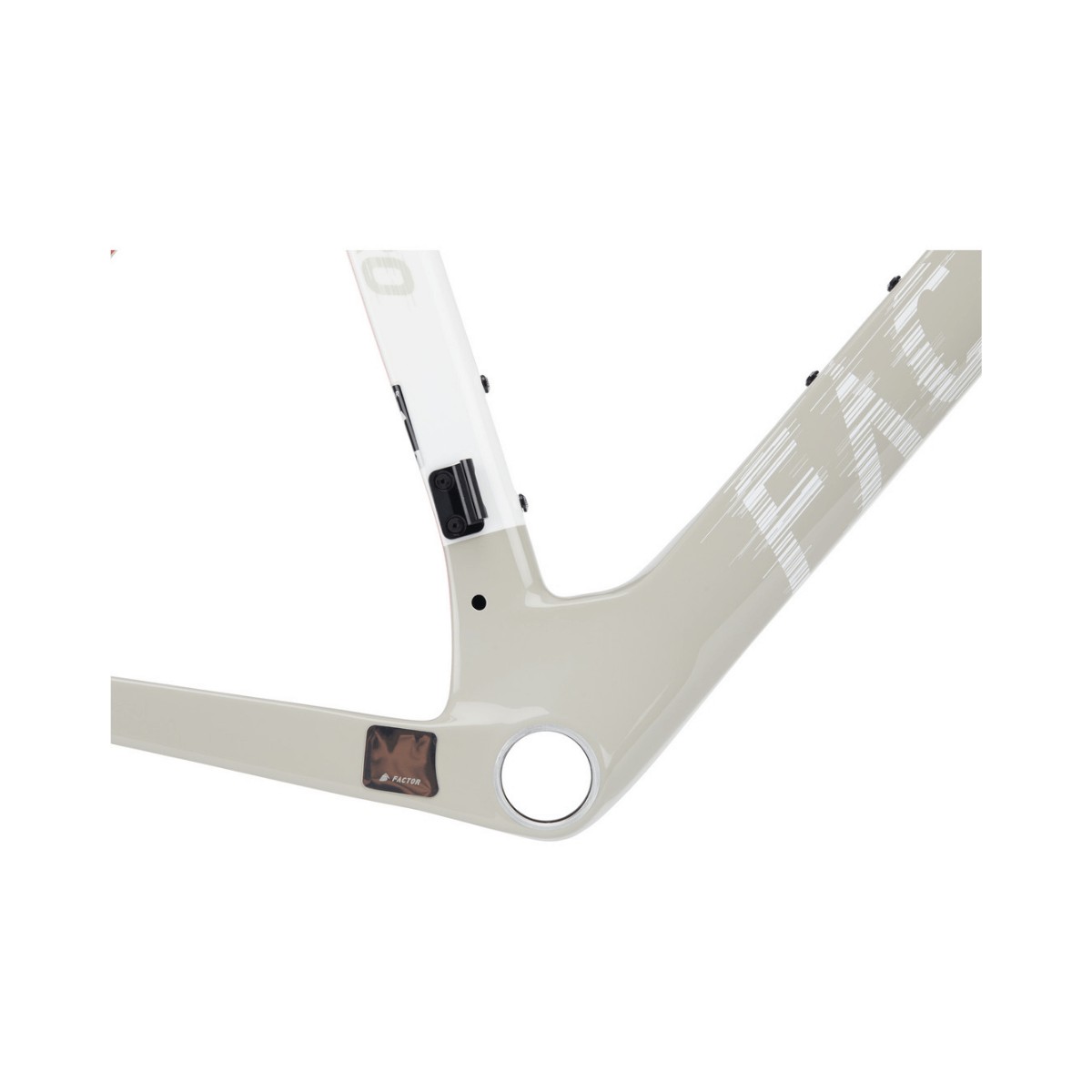

- - Bottom bracket standard: T47
- - Bottom bracket shell width: 77mm
- - Chain Line: 46.5 mm
- - Brake mounting: Flat Mount
- - Derailleur fixing: Direct Mount (High-Direct)
- - Cable installation: internal electrical
- - Bottle cage attachment: 2
Fork Specifications
- - Fork tube: 1 1/8 "- 1 3/8" tapered
- - Standard wheels: 12 x 100 mm (standard)
- - Standard axle: 12mm thru axle
- - Brake mounting: Flat Mount
- - Offset: 43mm, 48mm, 53mm
- -Advance: 57.1mm, 57.3mm, 57.5mm
- - Mounting height: 363 mm
- - Mounting width: 100 mm
- - Fork tube material: Carbon
- - Fork crown material: Carbon
- - Fork arms material: Carbon
- - Wheel axle support material: Carbon
- - Handlebar drop: 125 mm
- - Handlebar reach: 80 mm
- - Material of the handlebar power unit: Carbon
Specifications by size
| Size | 49 cm | 52 cm | 54 cm | 56 cm | 58 cm |
| specs | |||||
| Stack | 503 mm | 523 mm | 542 mm | 565 mm | 587 mm |
| Reach | 370 mm | 376 mm | 384 mm | 392 mm | 401 mm |
| Seat tube length | 456 mm | 480 mm | 502 mm | 525 mm | 548 mm |
| Top tube effective length | 511 mm | 527 mm | 550 mm | 566 mm | 582 mm |
| Axle distance | 968 mm | 968 mm | 982 mm | 985 mm | 1005 mm |
| Bottom Bracket Drop (BB Drop) | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Seat angle | 74.5º | 74th | 73rd | 73rd | 73rd |
| Turning angle | 71.7º | 72.5º | 72.5º | 73.3º | 73.3º |
| Fork Advance (Offset) | 53 mm | 48 mm | 48 mm | 43 mm | 43 mm |
| Fork advance | 57.1 mm | 57.3 mm | 57.3 mm | 57.5 mm | 57.5 mm |
| Stem length | 90 mm | 100 mm | 110 mm | 110 mm | 120mm |
| Handlebar width | 400 mm | 400 mm | 420 mm | 420 mm | 440 mm |
The product includes:
- 1 x Factor OSTRO VAM frame

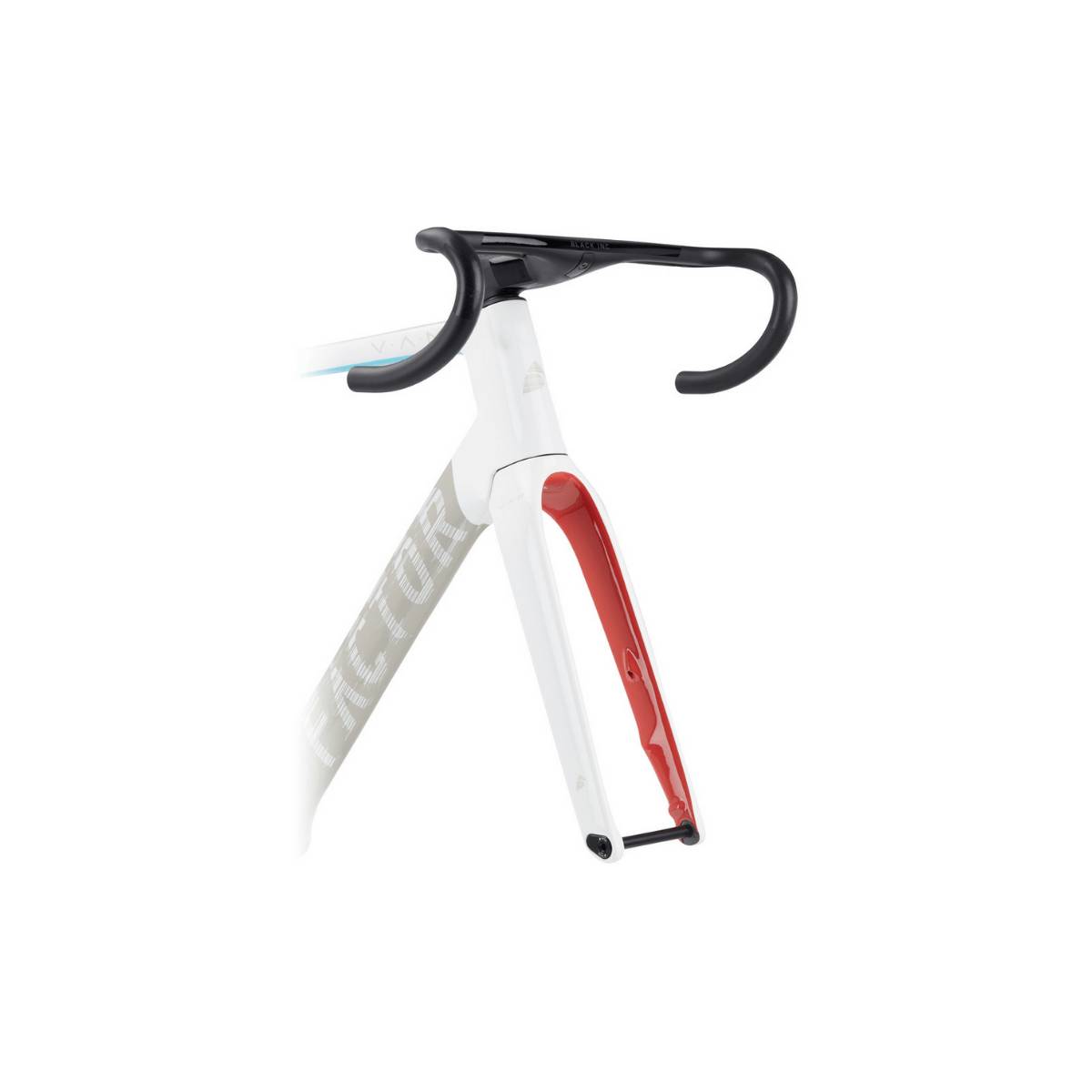

- 1 x Factor OSTRO fork

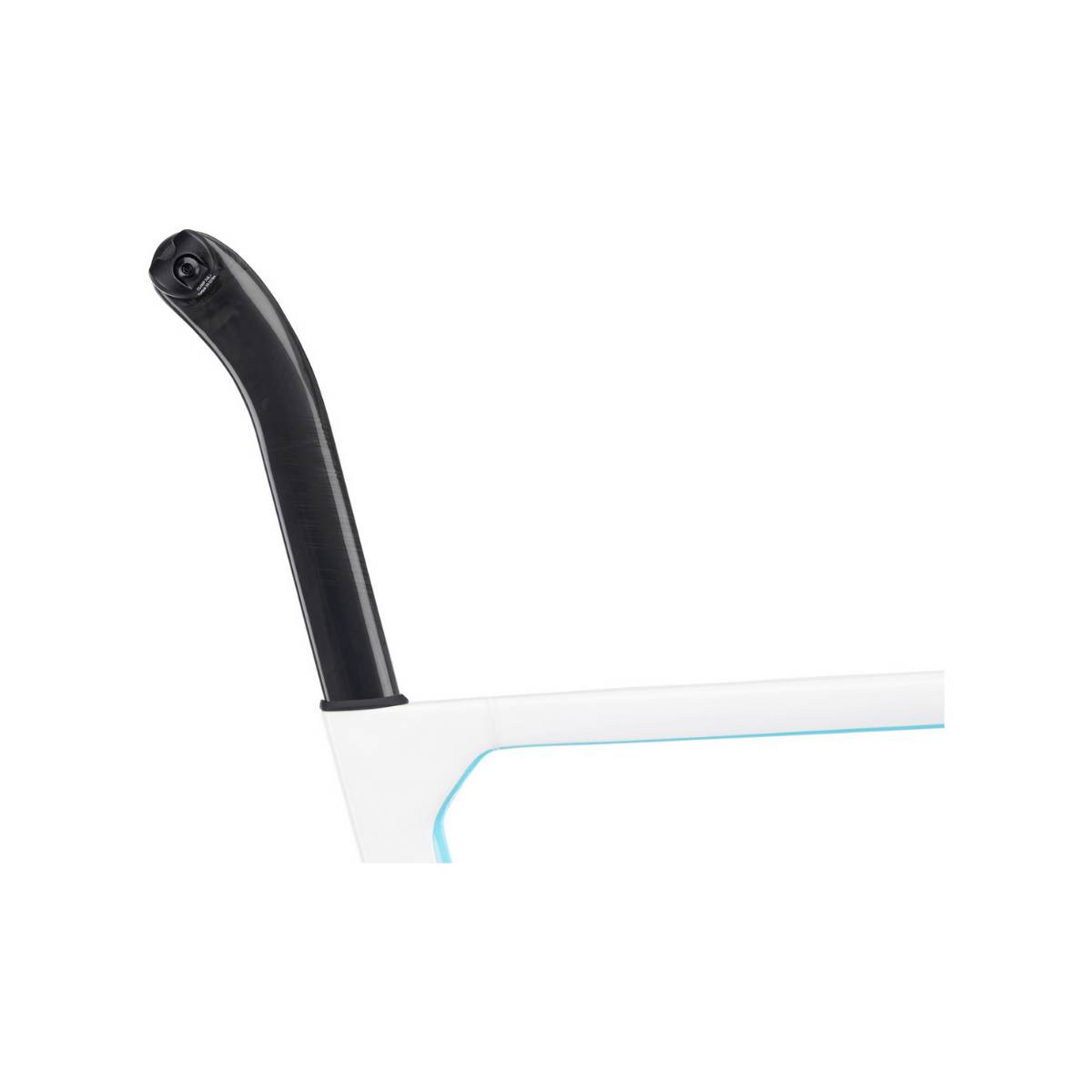

- 1 x Factor OSTRO seatpost
- 1 x CeramicSpeed 110 headset
- 1 x CeramicSpeed T47A bottom bracket

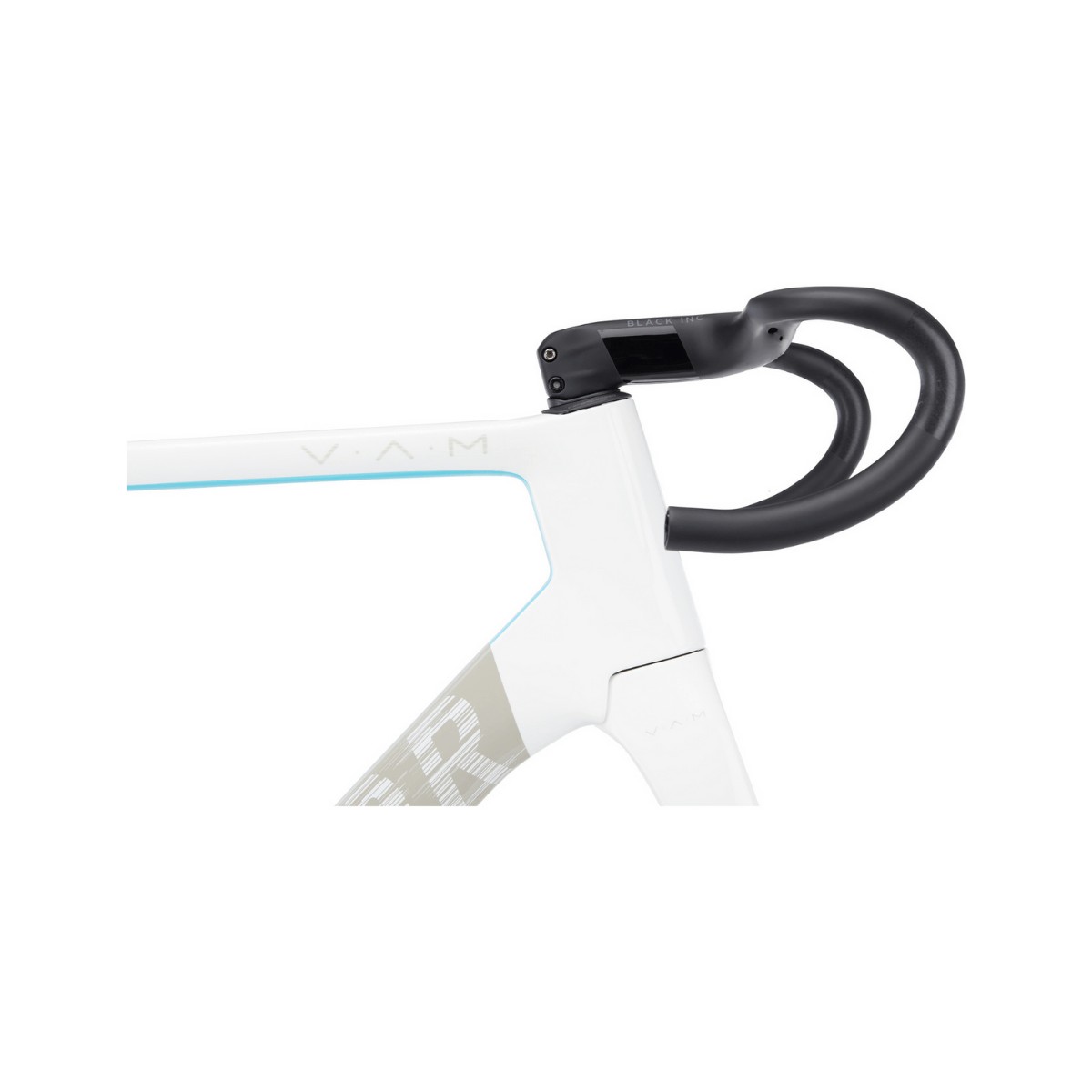

- 1 x Black Inc VAM handlebar power unit
- 1 x Factor / Black Inc. bracket for bike computers
- 1 pair of handlebar tapes
REFERENCES:
FW-V49
FW-V52
FW-V54
FW-V56
*CUSTOMIZE YOUR RIDE NOW OR FIND MORE INFORMATION BY CONTACTING US AT [email protected]
- Color
- White
FW-V49YH254009
