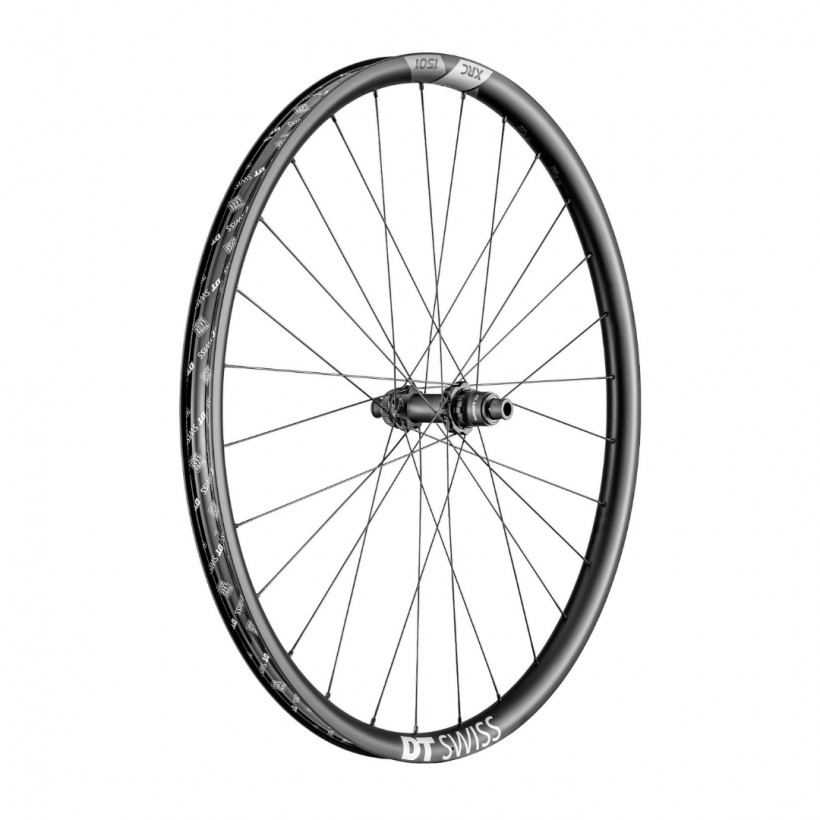

DT Swiss XRC 1501 Spline One 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
DT Swiss XRC 1501 Spline One 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
The XRC 1501 SPLINE ONE has been conceived for the needs of those Cross Country cyclists seeking maximum performance.
Hub Type: 240 w / Ratchet EXP 36
Rim: Carbon, Tubeless str side / hookless TSS
Inner rim width: 30mm
Spokes: DT competition® race straightp
DT Swiss XRC 1501 Spline One 29 "Disc Center Lock Rear Wheel 12/148 mm BOOST Thru Axle
The XRC 1501 SPLINE ONE has been specifically conceived for the needs of those Cross Country cyclists seeking maximum performance. With a 30mm wide carbon rim it offers the ideal grip for modern XC tires.
Equipped with 240 race-proven hubs and a RATCHET EXP cassette system, it converts even the smallest energy into forward momentum through its ultra-fast double-butted spokes and perfect wheel construction.
Hub Type: 240 w / Ratchet EXP 36
Rim: Carbon, Tubeless str side / hookless TSS
Inner rim width: 30mm
Spokes: DT competition® race straightp
SPECIFICATIONS
general
Net weight | 816 g |
Recommended maximum weight | 110 kg |
ASTM Classification | 3 |
Tire
Material | Coal |
Tire interface | Tubeless str side / Hookless TSS |
Valve hole | Lend |
Wheel diameter | 29 "/ 700C |
Sticker type | Waterslide |
Inside rim width | 30 mm |
Outer width | 36 mm |
Cross section
Bushing
Hub type | 240 |
Axle system | 12mm Thru Axle |
Installation width | 148mm Boost |
Brake system | Disc Center Lock |
Nucleus | SRAM XD MTB (ASRAM) / Shim. 12SP Light (ASL12) |
Core type | Ratchet EXP 36 |
Spokes and nipples
Left side spokes | DT competition® RaceStraightp |
Right side spokes | DT competition® RaceStraightp |
Radiated | Three-cross (1: 1) |
Ringleaders | DT Prolock Squorx ProHead alu |
The kit includes:
- Tubeless tape 32 mm
- TL valve alu black 18-25 mm
- IS 6-bolt adapter MTB
REFERENCE: WXRC150TEDRCA11460
